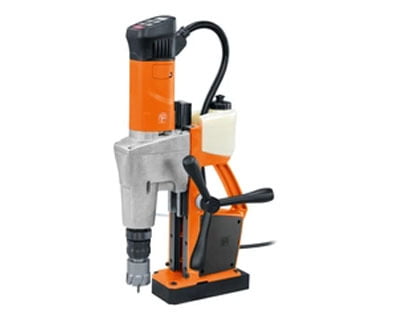

Fein Metal Core Drilling Unit KBM-50AUTO
₹203,004.00 ₹253,755.00
Warranty
6 Months GST Extra
18% Available on Request
Lightweight, powerful and ingenious 2-speed auto magnetic core drill offering maximum efficiency and minimum physical strain for core drilling in the workshop and on the construction site.
TECHNICAL DATA:
- Input : 1,200 W
- Output : 610 W
- Speed, full load : rpm
- Load speed in speed 1 : 130 - 260 1/min rpm
- Load speed in speed 2 : 260 - 520 1/min rpm
- Speed, no load : rpm
- Tool Holder : MK 3
- Carbide core drill bit max. ������ : 50 mm
- HSS core drill max. ������ : 40 mm
- Core drill, drilling depth max. : 50(75)* mm mm
- Twist drill max. ������ : 18/23** mm mm
- Tapping : M 16**
- Countersinking max. ������ : 50** mm mm
- Reaming max. ������ : 23** mm mm
- Core drill holder : QuickIN
- Changing the core bit : tool-free
- Stroke : 145 mm
- Total stroke range : 315 mm
- Magnetic holding power : 12,500 N
- Magnetic foot dimensions : 195 x 90 mm
- Cable with plug : 4 m
- Weight according to EPTA : 16.20 kg
INCLUDES:
1 coolant tank
1 lashing strap
1 swarf hook
1 centering pin
1 drift key
1 contact guard
1 case
TEST
- Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades.
- Saves time and money when producing a large number of holes thanks to the digitally controlled drill feed.
- With clockwise/anti-clockwise operation, electronic speed setting and a 315 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
- Thanks to reproducible and timed drilling times, working hours for commissioned and serial work can be planned.
- MT3 tool mounting.
- FEIN high-power motor with stable speed.
- Simple operating concept avoids mix-ups and can be clearly seen by the user.
- High magnetic holding force.
- Convenient magnetic holding force display.
- Integrated coolant tank.
- Tilt sensor.
- Speed saving "memory function".
- Personal safety switch.
- *���������Also available with accessories.
- ** In manual tool mode only
