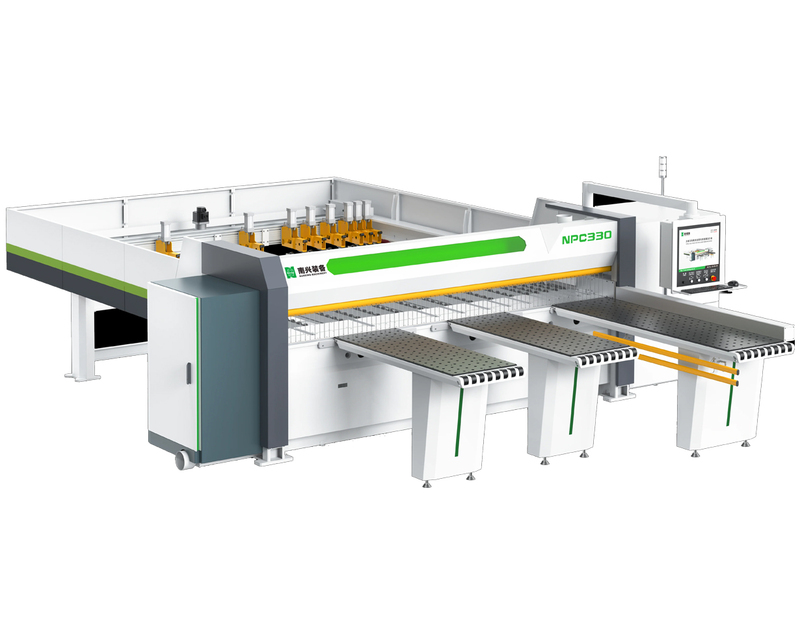

Nanxing Panel Dividing Saw with Printer+Software NPC330S (3300x90mm)
FEATURES
- Air float feed table
- Side operation rod
- Pressure Beam
- Hand Protector
- Piano dust cover
- Side alignment
- Gripper
- Anti-dropping device
- Sawing Carriage
- Full cover safety fence with door.
- Dust Collection Port 150mmx3no
- Auto Lubrication System
- User-friendly HMI IPC with USB ports
- Optimization software NX Pareto
- Operation Software
- Label Printer
- Pressure beam servo
- Main Saw/Scoring Saw separate control
- 1xset Saw blade
TECHNICAL SPECIFICATIONS:
- Max. cutting length : 3300mm
- Max. cutting thickness : 90mm
- Main Saw Motor power : 15kw
- Main Saw Rotating speed : 3910rpm/min
- Saw blade diameter : 380mm (Max400mm)
- Saw blade shaft diameter : 60mm
- Rotating speed : 4,300rpm/min
- Saw blade diameter : 200mm
- Saw blade shaft diameter : 45mm
- Saw carriage Motor power : 2kw
- Saw carriage Forward speed : 100m/min
- Saw carriage Backward speed : 120m/min
- Automatic feeding motor : 2kw
- Max. feeding speed : 85m/min
- IPC 15’’ Windows 7 : USB port: 4 pcs
- Air Requirement : 0.6 MPa
- Dust extraction Diameter : 150mm*3; 28m/min
- Power supply : 3P 415V / 50Hz
- Total power : 21.5kw
- Length *Width *Height : 6900 x 5495 x 1830mm
- Net weight : 5300kg
