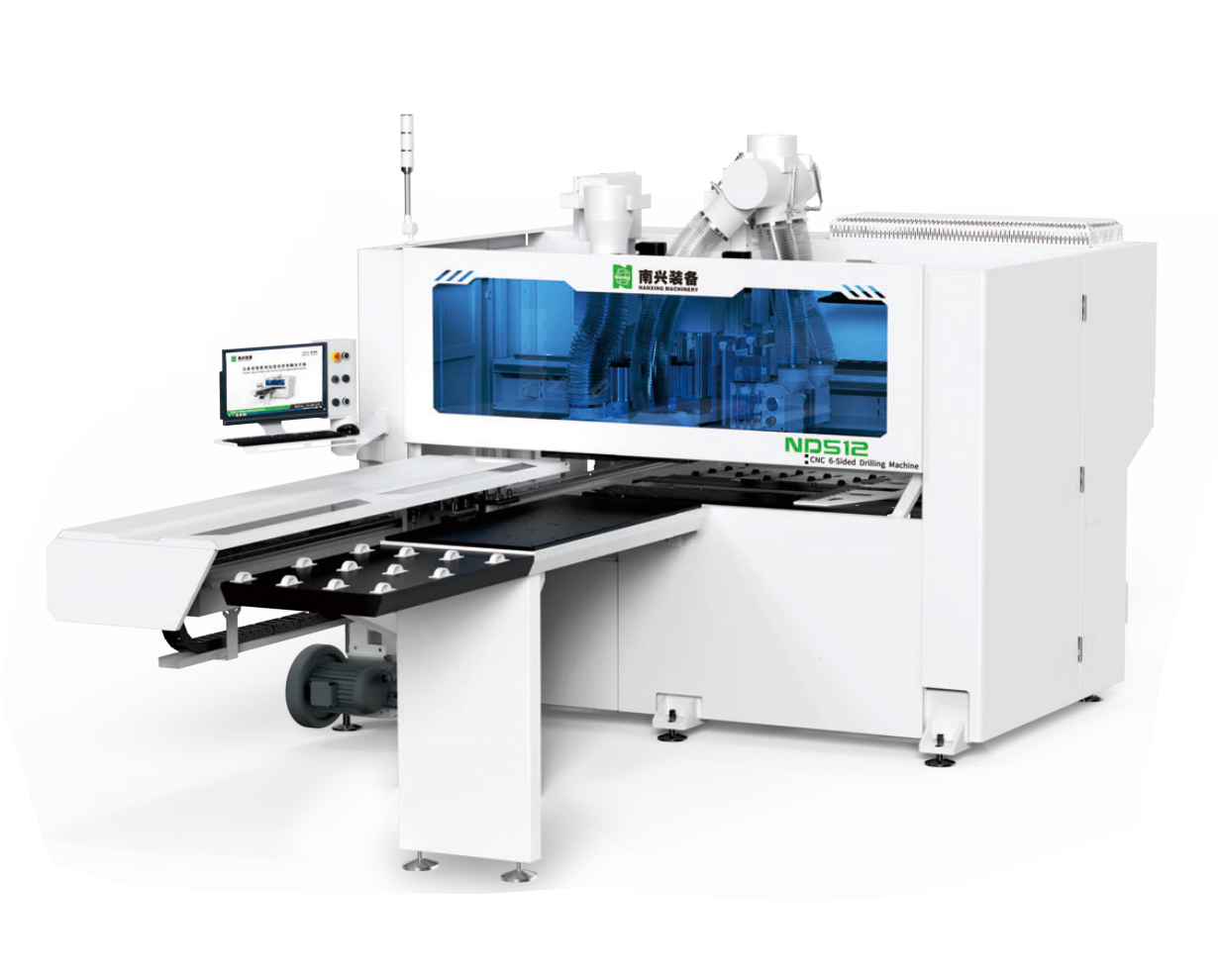

CNC 6-Sided drilling machine ND512TS(415V)

₹3,600,000.00 ₹4,500,000.00
Warranty
12 Months
Country of origin
China
GST Extra
18%
Available on Request

FEATURES

Long clamp beam & fast clamps 3.3 mtr

Infeed air float table : 500*1613 mm

Feed out table : 500*1613 mm

Accurate movement of each axis X,Y,U Transported by inclined rack and pinion

Accurate movement of Z Transported by Ball screw rod

Servo motor for each axis

Max travelling speed: X/U/Y/Z/V:135/135/75/30/30m/min

Linear guiding rail and bearings can be greased automatically

Board length detector

- Handwheel (Wired/Wireless(depend on the model) remote control for easy test run)

- Air jet for gripper

- WP length & thickness detection

- Standard Toolbox for testing

- #90901.00690 saw blade for lamello

- one-head aggregate for horizontal routing

Top Spindle 5.5kw

- Vertical drills: 10;

- Horizontal drills: 8 (2+2 in X direction; 2+2 in Y direction.)

Independent grooving saw

- Motor:1.7KW*1

- Saw blade size Dia.:100*22*4

ATC main spindle

- 4 slot tool changer

Bottom Spindle 3.5KW

- Drilling block : 9 vertical drills

Min. processing size

- Drilling block design and software can do drilling for narrow parts

- Panel length: 200-3000mm

- Panel width 30-1200mm

Stack processing

- Support stacking processing if hole position is mirror

Hand controller

Start button & pedal switch

E-stop & Pause bar

Industrial computer

- Windows 10 operating system.

- All-in-one industrial computer

SYNTEC CNC control system

Excellent electrical components

Excellent electrical components

User-friendly operation Control interface

- Manual programming interface

- Tool management

- Simulation function

- File format support MPR, BXF, BAN, BPP, PDX, XML, XXL

Air conditioner on control cabinet

Safety light barrier & safety fence


TEST

TECHNICAL DATA:

- Total power : 13.87 KW

- Machine size : 3962*2810*2220 mm

- Power supply : 415V/50Hz

- Air supply : 0.6-0.7MPa

- Control system Brand : SYNTEC

- Panel size Length : 200-2800mm

- Panel size Width : 30-1220mm

- Panel size Thickness : 10-60mm

- Max. traveling speed (X /U axis : 135m/min

- Max. traveling speed Y axis : 75m/min

- Max. traveling speed Z axis : 30m/min

- Working table Material : HPL

- Working table size : 1478 x 275 mm

- Working table height : 955mm

- Drilling block qty : Top 1; Bottom 1

- Vertical drills qty Top : 10

- Horizontal drills qty Top : X: 4 + Y: 4

- Vert. drills qty Bottom : 9

- Max drill diameter : 35mm

- Drill spacing : 32mm

- Rotation speed : 5000rpm

- Shank diameter : 10mm

- Drill length : 70mm

- Main spindle Top : 1

- Main spindle power : 5.5kw

- Dust collector qty : 2

- Dust collector diameter : Top 200mm×1

- Dust collector diameter : Bottom 125mm×1

- Dust collector speed : 28m/min

- Auto Tool Changer - 4 Slots
