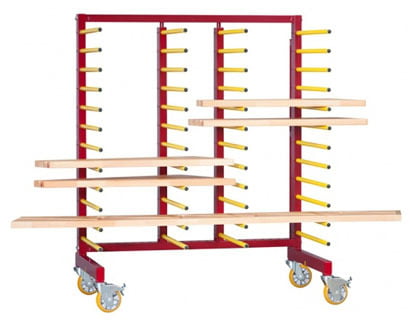

JOWI Mobile Rack with 11 levels
₹125,000.00 ₹156,250.00
Warranty
Not Applicable GST Extra
12% Available on Request
Technical Specification: -Mobile Rack in the frame construction with support tubes on 2 L-uprights and 2 i-uprights (slot grid approx. 50 mm) -31 slots for support tubes, thereof 11 equipped - 11 levels -Slot in system with locking screw for adaption of clearance -Diameter of tubes 29 mm, usable length 660 mm, clearance 113 mm -Cover of tubes solvent resistant, compatible with usable lacquers 4 ball-bearing steering castors ? 160 mm -with cast polyurethane covering, 2 of which can be locked Length x Depth x Height: 1.510 x 830 x 1.920 mm -Maximum load: for the entire Mobil Rack 500 kg; per 2 support tubes 55 kg -Precondition: even load sharing and no shock force -Mobile rack for environmental temperatures up to 80?C steelconstruction, varnishing RAL 3004 purple red -Net Weight: 105 kg
