• SPECIFICATION:- Model  : Mobile Slim Lift (Skid Lift)

• Battery Operated- Lifting capacity  : 1000 Kgs- Fork length  : 1200 mm- Overall width over fork  : 685 mm- Height of the fork lowered  : 90 mm- Travelling Lift  : 810 mm- Maximum stacking height  : 900 mm- Power Pack  : 2 KW, 12V DC Motor with 1.6 CC Pump- Battery Charger  : SPE Italian Make, 12V, 15A- Power Source  : 12V 200 Amp Tubular battery- Frame  : Heavy duty formed steel for continuous use"- Steering  : Skid Lift is capable of turning through 180°, with minimum turning radius for easymaneuverability."- Wheels / Fork Rollers  : 200 x 50 mm dia PU Castor Wheels with Lock / 80 x 60 mm dia PU Rollers- Linear Movement  : Manual- Movement : With Auto Raising & Lowering Arrangement

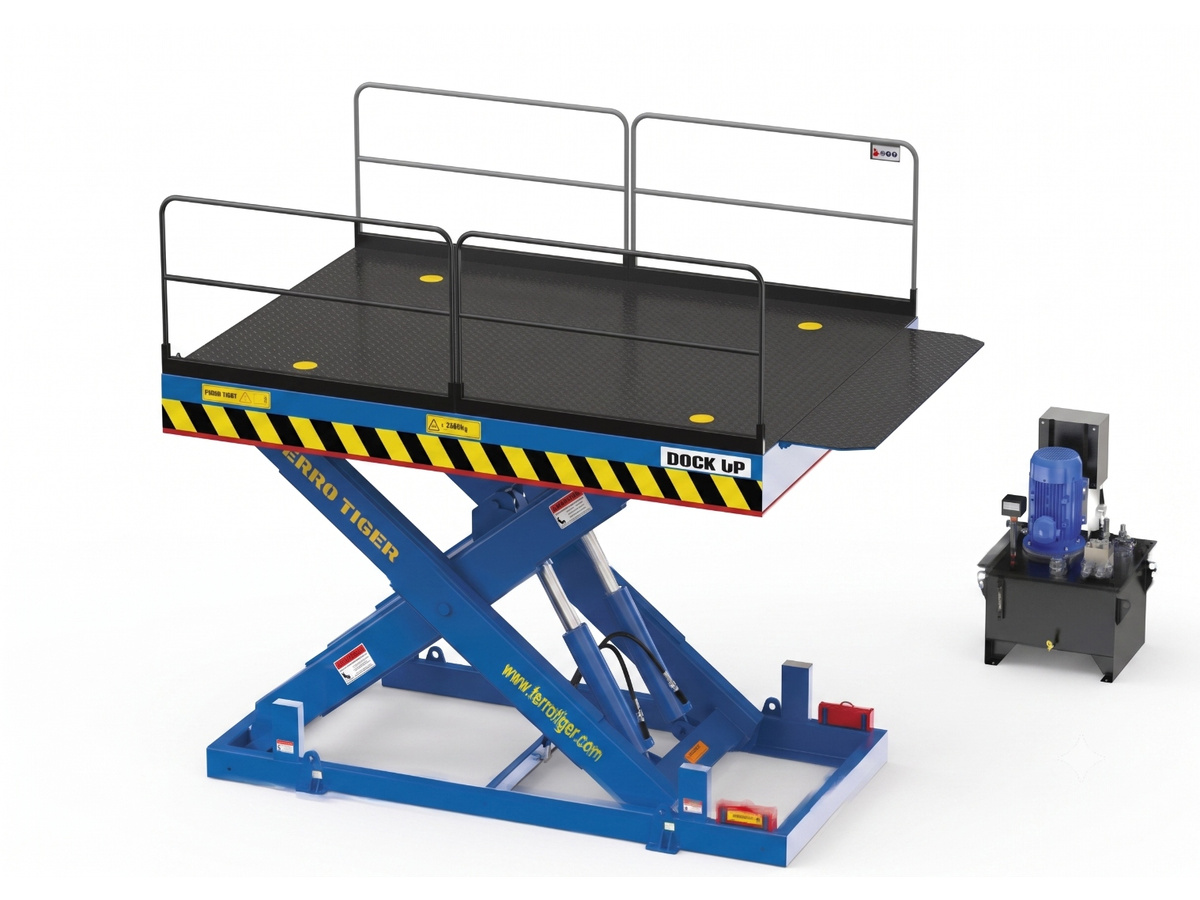

• SPECIFICATION:

• Number of Scissors Arms : One

• Max Capacity of lift table : 1000 Kgs

• Load to Raise/Lower : 1000 Kgs

• Top Platform size : 2200 mm x 800 mm

• Max height from base frame : 900 mm

• Closed height : 300 mm (With Conveyor Rollers)

• Stroke / Travelling lift : 600 mm

• Motor : 1.5 HP - 3 Phase 415 V AC 50 Hz.

• Power Source : 3 PH, 415V Neutral

• Control Voltage : 220 V AC

• Control type : Foot Operated Pedal Switch

• Top Platform base sheet : 5 mm thick MS Sheet

• Power Pack Position : Inside of Scissor Lift

• Movement / Location : Stationary – Floor Mounted

• Equipment Color : RAL 7035 White

• Roller Conveyor Diameter : Ø 50 mm

• Roller Pitch & Length : As per our design

• Conveyor Roller Make : Reputed Make

• Conveyor Type : Gravity Rollers

• Senzor : Auto Raising & Auto Lowering

• Lifting time / Speed : 15 sec approximate @ 40 mm/sec

• Lowering time / Speed : 15 sec approximate @ 40 mm/sec

• Cycle Time : Customer to specify

• Frequency of Operations per hour : Customer to specify

• Duty Cycle – No. of Shifts : Customer to specify

• Motor Running Type : Non-Continuous

• Circuit Type – for raising and lowering : Inching

• Stopping Accuracy : /- 10 mm

• Site temperature Max & Min : N/A

• Humidity : N/A

• Input: 360-500 / Output: 415V SALIENT FEATURES

• High efficiency performances; lower cost of ownership

• Highly reliable - 100% unbalanced load suitability

• Wide Input voltage range models against harsh utility environment

• Power output protected against OV

• Advanced micro controller circuit ensures constant output voltage even with distorted Input.

• User friendly digital screen with status LED s for easy magement

• Products are designed to run 24/7x 365

• Technology

• Efficiency above 98% & energy saving.

• Quickest response time 10 ms (Half a cycle)

• High speed of voltage correction with zero hunting.

• Excellent regulation as high as 0.5%.

• Flush mounting of variac ensuring zero carbon deposit & optimum brush tension.

• Zero wave form distortion & Uffected by load PF Auto / Manual Restart Programmable

• Easy & low Maintenance cost

• Improves life of all equipment

• Input: 350-470 / Output: 415V SALIENT FEATURES

• High efficiency performances; lower cost of ownership

• Highly reliable - 100% unbalanced load suitability

• Wide Input voltage range models against harsh utility environment

• Power output protected against OV

• Advanced micro controller circuit ensures constant output voltage even with distorted Input.

• User friendly digital screen with status LED s for easy magement

• Products are designed to run 24/7x 365

• Technology

• Efficiency above 98% & energy saving.

• Quickest response time 10 ms (Half a cycle)

• High speed of voltage correction with zero hunting.

• Excellent regulation as high as 0.5%.

• Flush mounting of variac ensuring zero carbon deposit & optimum brush tension.

• Zero wave form distortion & Uffected by load PF Auto / Manual Restart Programmable

• Easy & low Maintenance cost

• Improves life of all equipment

• The compressors are constructed with the following major components:

• State of the art compression element

• IP55 (TEFC) motor meeting with greased for life bearings

• ES4000 Basic

• Air-oil separator

• Inlet air filter

TECHNICAL DATA

• Bar : 10

• cfm : 52

• kW : 11

• hp : 15

• tank : 500ltr Scope of supply

• Oil Separator System, Oil Filter and Consumables

• Simplified Control and Regulation System

• Air Dryer (TMD unit)

• Paint Spray Booth : 4.5M(L) X 4.5M(W) X 2.75M(H) Flash Of Zone : 9.0M(L) X 4.5M(W) X 2.75M(H) Heating Unit : Hot Air Handling Unit – 36 KW

• Paint Booth Size: - 4000mm W x 5100mm D x 2800mm H Drying Booth Size: - 8000mm W x 5100mm D x 2800mm H SCHEDULE OF EXCLUSIONS  ????? All kind of civil work.  ????? Electrical Cabling and earthling up to all our control panels.  ????? Necessary work & safety permit during installation work.  ????? Unloading & Material Shifting at site By Customer.

• SPECIFICATIONS Model Number : LH 100 3E 90 22 15 2TCapacity : 2000 kgsPlatform Size: 2200 x 1500 mmMax height : 900 mmMin height : 100 mmStroke : 800 mmMotor : 3 HPControl Voltage : 24 V DCAuto Raising / Lowering Sensor

• 3 Phases: 4 Wires: 50 Hz: Unbalance Output : 400V + 1%: 3 Phase: 50Hz: Balance Cooling : A.N. O/P Voltage Adjustment : + 10 V By Means Of Potentio Meter. Controls : Auto / Manual Specification : Overvoltage & Undervoltage Trip: Overload & Shortcircuit Protection By Mcb: Alog Voltmeter To See I/P & O/P Voltages: Built In Single Phase Priventer: Alog Ammeter To See Load Currants Indication : Mains On: O/P On : O/V: U/V Single Phasing Trip.

• 3 Phases: 4 Wires: 50 Hz: Unbalance Output : 400V + 1%: 3 Phase: 50Hz: Balance Cooling : A.N. O/P Voltage Adjustment : + 10 V By Means Of Potentio Meter. Controls : Auto / Manual Specification : Overvoltage & Undervoltage Trip: Overload & Shortcircuit Protection By Mcb: Alog Voltmeter To See I/P & O/P Voltages: Built In Single Phase Priventer: Alog Ammeter To See Load Currants Indication : Mains On: O/P On : O/V: U/V Single Phasing Trip.

• 3 Phases: 4 Wires: 50 Hz: Unbalance Output : 400V + 1%: 3 Phase: 50Hz: Balance Cooling : A.N. O/P Voltage Adjustment : + 10 V By Means Of Potentio Meter. Controls : Auto / Manual Specification : Overvoltage & Undervoltage Trip: Overload & Shortcircuit Protection By Mcb: Alog Voltmeter To See I/P & O/P Voltages: Built In Single Phase Priventer: Alog Ammeter To See Load Currants Indication : Mains On: O/P On : O/V: U/V Single Phasing Trip.

• SPECIFICATION: 3 Phases: 4 Wires: 50 Hz: Unbalance Output : 400V + 1%: 3 Phase: 50Hz: Balance Cooling : A.N. O/P Voltage Adjustment : + 10 V By Means Of Potentio Meter. Controls : Auto / Manual Specification : Overvoltage & Undervoltage Trip: Overload & Short-circuit Protection By Mcb: Alog Voltmeter To See I/P & O/P Voltages: Built In Single Phase Preventer: Alog Ammeter To See Load Currants Indication : Mains On: O/P On : O/V: U/V Single Phasing Trip.

• 3 Phases: 4 Wires: 50 Hz: Unbalance Output : 400V + 1%: 3 Phase: 50Hz: Balance Cooling : A.N. O/P Voltage Adjustment : + 10 V By Means Of Potentio Meter. Controls : Auto / Manual Specification : Overvoltage & Undervoltage Trip: Overload & Shortcircuit Protection By Mcb: Alog Voltmeter To See I/P & O/P Voltages: Built In Single Phase Priventer: Alog Ammeter To See Load Currants Indication : Mains On: O/P On : O/V: U/V Single Phasing Trip.

• This product has 1800W power with a 2-stage control converter. Product temperature 400 / 500C. There is also a lock button so it doesn&apos t need to be pressed during work.

• Input: 350-470 / Output: 415V SALIENT FEATURES

• High efficiency performances; lower cost of ownership

• Highly reliable - 100% unbalanced load suitability

• Wide Input voltage range models against harsh utility environment

• Power output protected against OV

• Advanced micro controller circuit ensures constant output voltage even with distorted Input.

• User friendly digital screen with status LED s for easy magement

• Products are designed to run 24/7x 365

• Technology

• Efficiency above 98% & energy saving.

• Quickest response time 10 ms (Half a cycle)

• High speed of voltage correction with zero hunting.

• Excellent regulation as high as 0.5%.

• Flush mounting of variac ensuring zero carbon deposit & optimum brush tension.

• Zero wave form distortion & Uffected by load PF Auto / Manual Restart Programmable

• Easy & low Maintenance cost

• Improves life of all equipment
