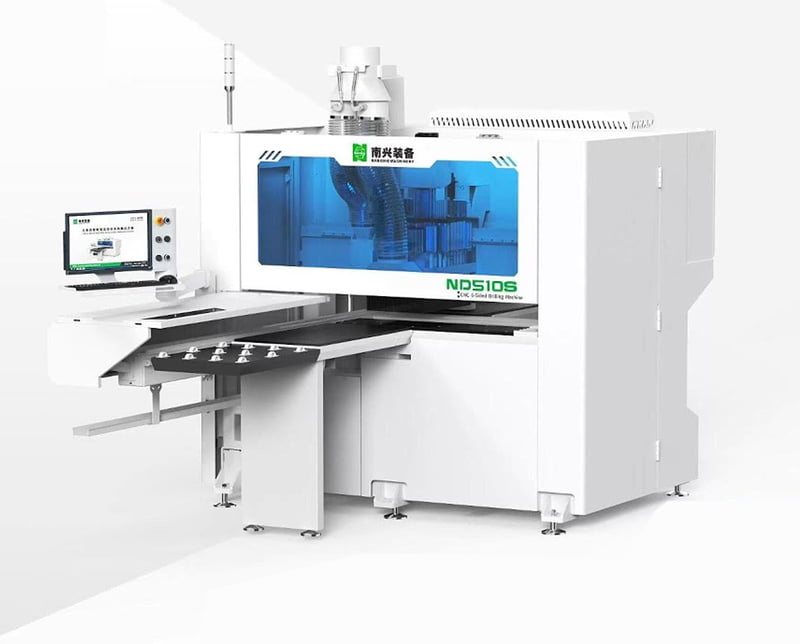

CNC 6-Sided drilling machine ND510S
₹2,825,000.00 ₹3,531,250.00
Available on Request
Multi-functional CNC drilling machine is able to drill from 6 sides.
Top grooving,
Simple routing meets different process requests and gives batch-size-one production max flexibility;
Machine is configured with one top and one bottom drilling blocks,one 3.5kw top main spindle.
Software is open port, support most formats in market.
Compact design, save space
FEATURES
Long clamp beam & fast clamps 3.3 mtr
Infeed air float table : 500*1613 mm
Feed out table : 500*1613 mm
Accurate movement of each axis X,Y,U Transported by inclined rack and pinion
Accurate movement of Z Transported by Ball screw rod
Servo motor for each axis
Max travelling speed: X/U/Y/Z/V:135/135/75/30/30m/min
Linear guiding rail and bearings can be greased automatically
Board length detector
