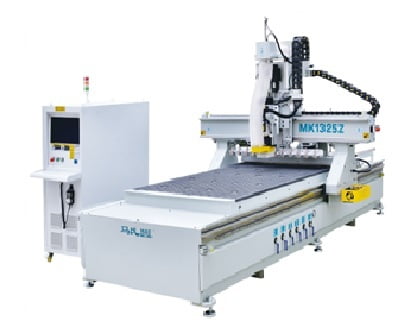

CNC Machining Center(Two Tables) 1300x2500 | 11kW
₹2,875,000.00 ₹3,593,750.00
Available on Request
TECHNICAL SPECIFICATIONS:
- Control System : Taiwan SYNTEC
- Servo Driver : MAS Customized High Power AC Driver
- Spindle : 12kw Spindle with 14 postions Tool Changer
- Frequency Invertor : 11KW
- Y Axis : German Roust 30# Recrtangle Guide Rail
- X Axis : German Roust 25# Recrtangle Guide Rail
- Z Axis : German Roust 25# Recrtangle Guide Rail
- X,Y Axis : Helical Rack
- Roller Pressing : 2
- Working Stroke : 2800x1250x180 MM x2
- Table : Equip with Air Cylinder Clamper
- Standard Rectanlge Steel Welding Table
- Vacuum Pump : None
- Weight Around :4T
- Idle Running Speed : 0-80m/min
- Working Speed : 0-20m/min
- Precision : +/-0.05mm
- Relocation Accuracy : +/-0.02mm
- Precision : +/-0.05mm
- 17.Install Power: : 17.5kw
- Software : All CAM software is exclude; SYNTEC post processor is provided.
