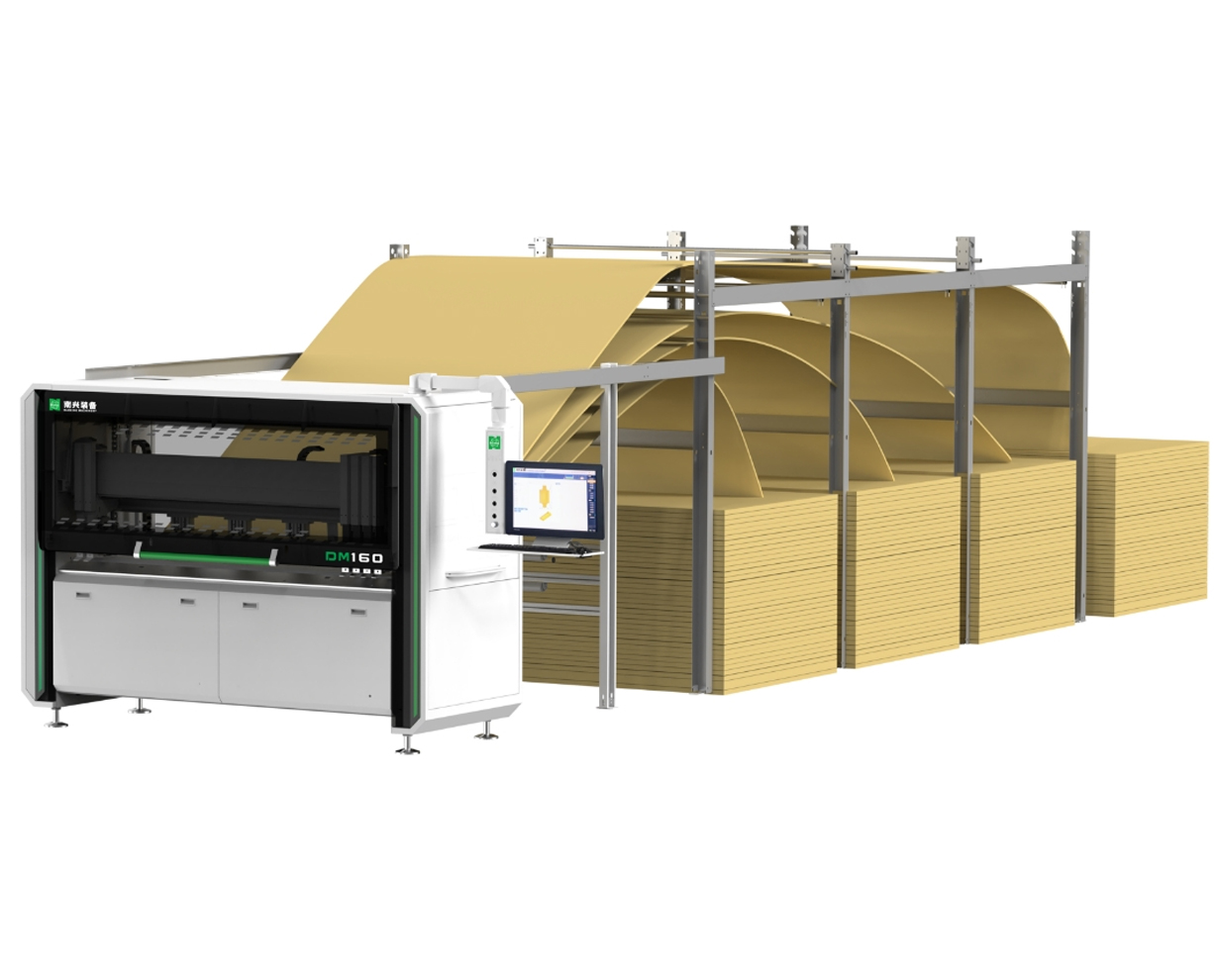

Nanxing Corrugated Sheet Cutting Machine DM160 (9000*2330*2350mm)

The Nanxing DM160's pacing falls between 3 to 5 packs per minute depending on material properties and complexity. Each of the four material bins are 1500mm wide, which allows for uninterrupted operation with numerous configurations of sheets.

The unit's ���corrugated paper�۝ has a thickness ranging from 2.5 to 6.5mm and can span 110mm to 1600mm in width. It is customary to provide further explanation around the ���paper box length�۝ of 110mm; however, the unit accepts cut piece widths from 180mm to 1220mm and lengths between 18mm to 1600mm.

A paper utilization value of 95% depicts filling efficiency and the stacking capacity goes as high as 1300mm. The maximum tolerance on longitudinal cuts is set at 0.5% while more generous limits of +/- 2.0mm apply for transverse cuts. For precise applications, rigorous scrutiny non the ���less than 5%�۝ broad general cutting tolerance would be merited.

Main Technical Parameters

- Equipment Dimensions : 9000x2330x2350mm

- Cutting Speed : 3 - 5 packs/min

- Connected Load : 5 kw

- Rated Current : 3.5 A

- Rated Air Pressure : 0.6Mpa, Flow rate 20-100L/min

- Cutting Tolerance : less than 5%

- Control Voltage : 24VDC, Direct current complies with VDE

- Operating Voltage : 415V/50Hz/Three-phase

- Number of Material Bins : 4 bins

- Material Bin Width : 1500 mm

- Fixed Cutting Longitudinal Tolerance : Max 0.5%

- Fixed Cutting Transverse Tolerance : Max +/- 2.0mm

- Paper Box Length : Paper Box Length 110mm

- Paper Box Width : 180 - 1220mm

- Paper Box Height : 18 - 1600mm

- Main Frame : Carbon steel cold rolling plate processing

- Corrugated Paper Thickness : 2.5 - 6.5mm

- Corrugated Paper Width : 110 - 1600

- Maximum Paper Stacking Height : 1300mm (including 120mm pallet)

- Paper Utilization Rate : 95%

- Auxiliary Frame : Q235A

- Support Feet : Tempered M30 Bolt + Base Plate

- Aluminum Profile : 6061 type ultra-hard aluminum profile

- Equipment Weight Approximately : 1200k
