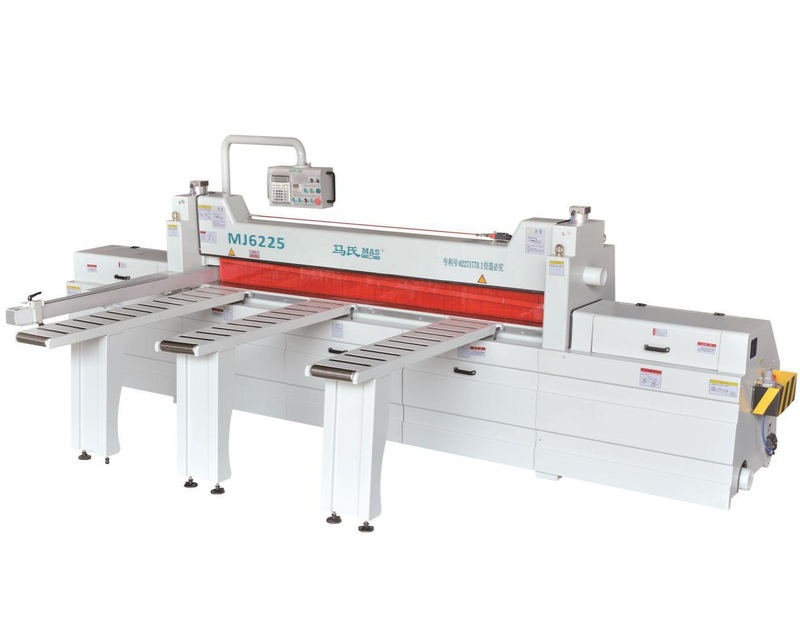

Manual Beam Saw 2500mm MJ6225
₹1,675,000.00 ₹2,093,750.00
Warranty
12 Months Country of origin
China GST Extra
18% Available on Request
TECHNICAL DATA:
- Cut Length : 2500 mm
- Cutting Height : 65 mm
- Main Saw Size Dia.: 305 x 80mm
- Rotational Speed of Main Spindle : 4500 RPM
- Scoring Saw Size Dia: 160 x 55mm
- Rotation speed of Scoring : spindle : 6300 RPM
- Cutting Speed: 13.2/26.4m/min
- Main Saw Motor Power: 7.5kw
- Power input : 380 V / 3Phase / 50 Hz
- Overall Size:5150*1140*2140mm
- Number of Air Floating Table : 3 Nos
- 1NO. Saw Blade
- Power input : 415 V / 3Phase / 50 Hz
