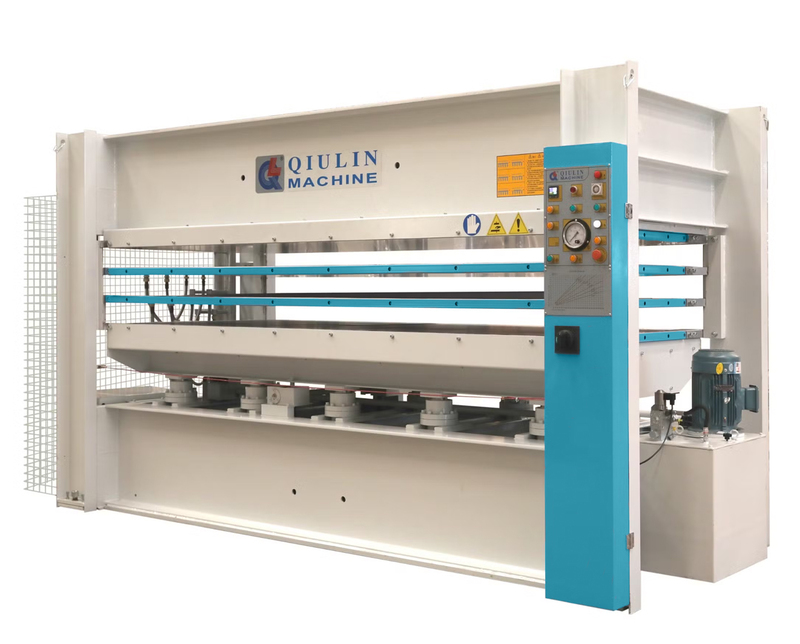

Hot Press Machine BY214X10/16(1)H1RC [3200x1300mm | 160T | Solid Steel | Daylight 1]
₹2,600,000.00 ₹3,250,000.00
Warranty
12 Months GST Extra
18% Available on Request
TECHNICAl DATA
• Model : BY214×10/16(1)H1RC
• Total pressure : 1600KN
• Specific pressure : 3.8Kgf/cm2
• Working layer : 1 layers
• Platen No.& Size : 2-3200x1300x42mm(solid steel drilled hot platen covered with mylar)
• Platen opening : 360mm
• Cylinder No.& Dia : 10-φ85mm
• Max temperature : 120℃
• Heating way : Electric heating with thermal oil
• Heating medium : thermal oil
• Installation power : 4 0.75 36KW
• Platen opening way : Automatically
• Loading way : Length side,Manually
• Voltage : 3PE 415V 50Hz
