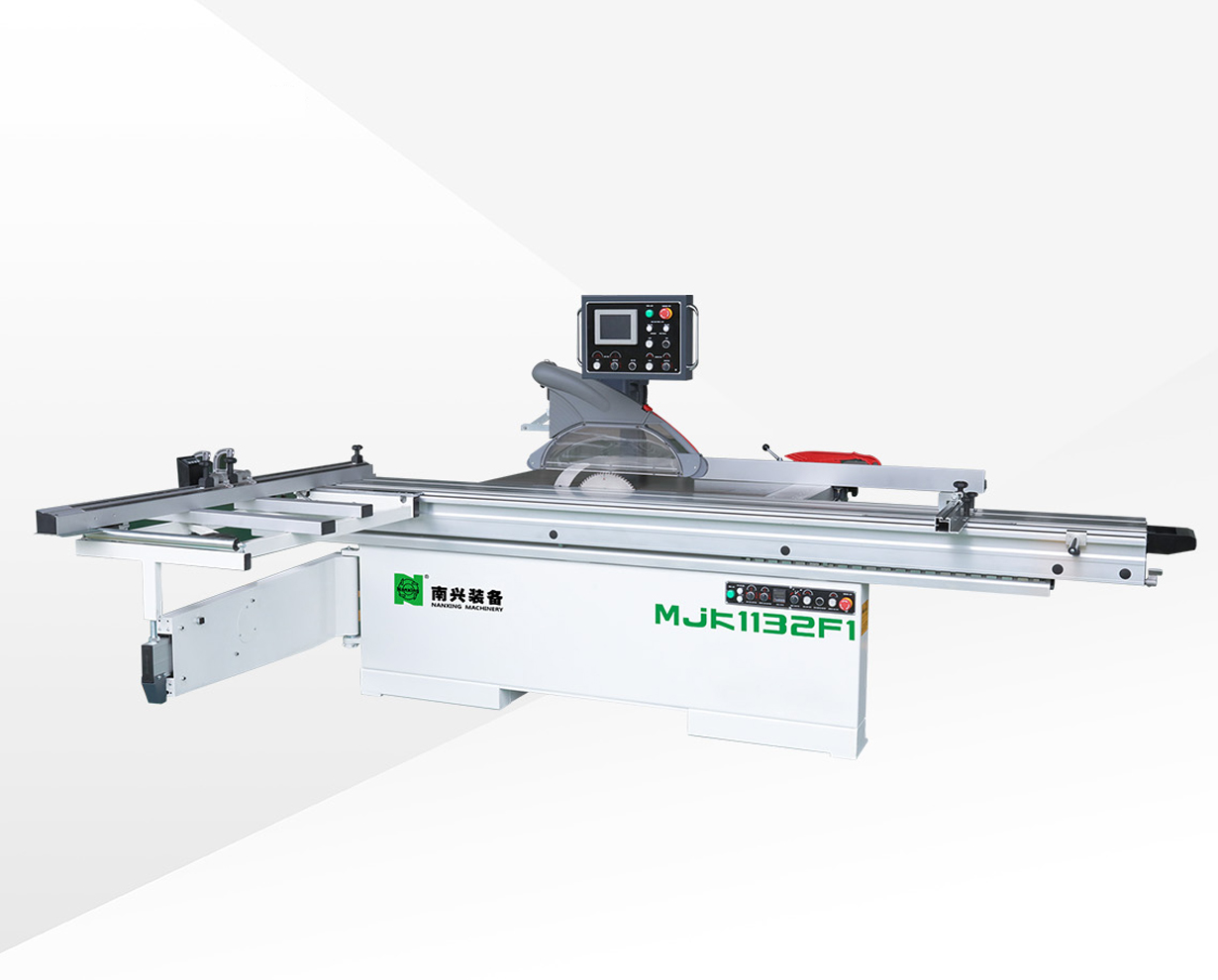

Nanxing Sliding Table Saw MJK1132F1 415V [3200 mm Table | 1200mm Digital Rip-cut Fence | 6.6 kW | DRO on Crosscut Fence]
₹750,000.00 ₹937,500.00
Available on Request
Nanxing Sliding Table Saw MJK1132F1 415V [3200 mm Table | 1200mm Digital Rip-cut Fence | 6.6 kW | DRO on Crosscut Fence] - Max. Cutting length length : 3100mm
| Feature | Advantage | Benefit to You |
|---|---|---|
| ★ QUALITY | ||
| Servo pressure beam | Computer-controlled clamping pressure | Clean, precise cuts; no panel slippage |
| ⚡ PRODUCTIVITY | ||
| Machine weight: : 980kg | Heavy-duty welded steel frame | Stable operation; less vibration; longer machine life |
| Total power: : 6.6kw | Engineered for continuous industrial use | Consistent performance across full shifts |
Technical Specifications
| Parameter | Specification | |
|---|---|---|
| Max. Cutting length length | 3100mm | |
| Max Rip-cut length | 1200mm | |
| Cutting thickness at 0 / 45 Deg. | 70/100mm | |
| Main saw Speed | 3800/5200rpm | |
| Main saw Motor | 5.5kw | |
| Saw blade Size Dia. | 300 - 350 / 30 | |
| Scoring saw Speed | 9000rpm | |
| Scoring saw Motor | 1.1kw | |
| Saw blade tilting Deg. | 0-45° | |
| Dust collection | Dia. : 120mm | |
| Total power | : 6.6kw | |
| Power | 415V 50HZ | |
| Dimension | : 3300*3×3430*1×1200mm | |
| Net weight | : 980kg | |
| ₹ ROI | ||
| Power Consumption | : | Optimised motor sizing reduces energy cost vs. comparable machines |
| Multi-Function | : | One machine replaces multiple manual operations — reduces labour headcount |
| Labour Reduction | : | Automated feeding and processing cuts operator requirement by up to 50% |
| ✓ TRUST | ||
| Authorised Dealer | : | Caple — authorised Nanxing dealer since 1974 |
| Warranty | : | 12 months / 2000 hours, whichever is earlier |
| Service Network | : | Pan-India service and spare parts support from Caple Industrial Solutions |
For any demo, techno-commercial query, or booking
Get expert advice on machine selection, factory layout, pricing, and delivery timelines
☎ Contact Us▶ Book a DemoOptions Available
All features listed above are included as standard equipment. For optional add-ons and custom configurations, please contact us.
For pricing, delivery timelines, and live demonstration: Contact Caple Industrial Solutions
