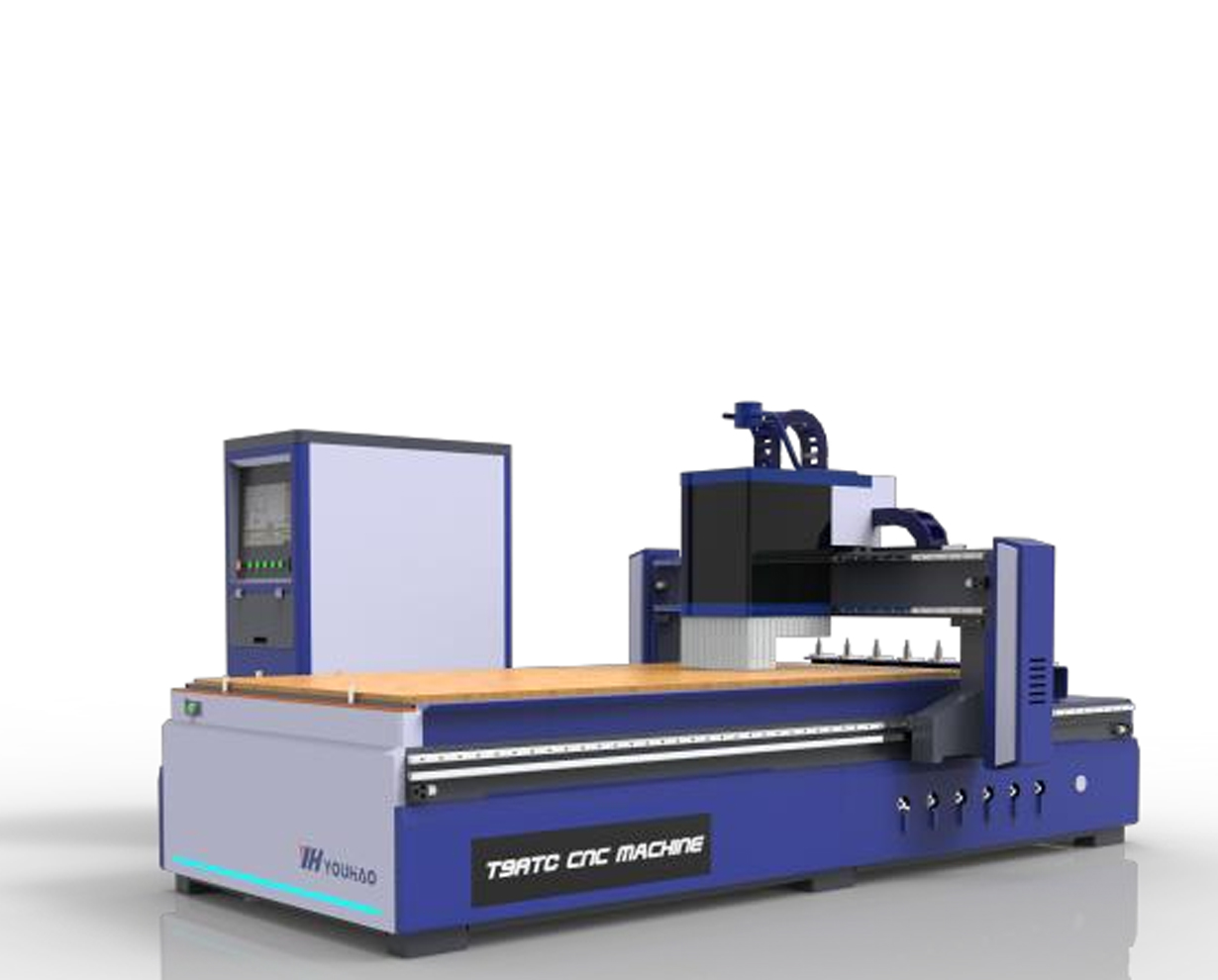

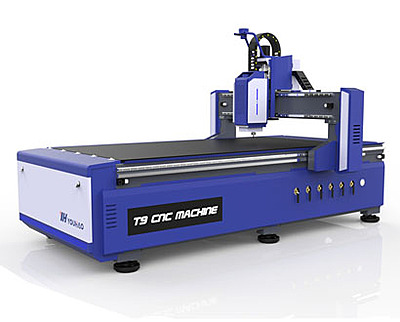

Flatbed CNC routing machines with Rotary T9-1325(Pump)RT | 1300*2500*200 | 45 m/mm | Servo Motor | 6 kW | Pump
₹1,375,000.00 ₹1,718,750.00
Warranty
12 Months Country of origin
China GST Extra
18% Available on Request

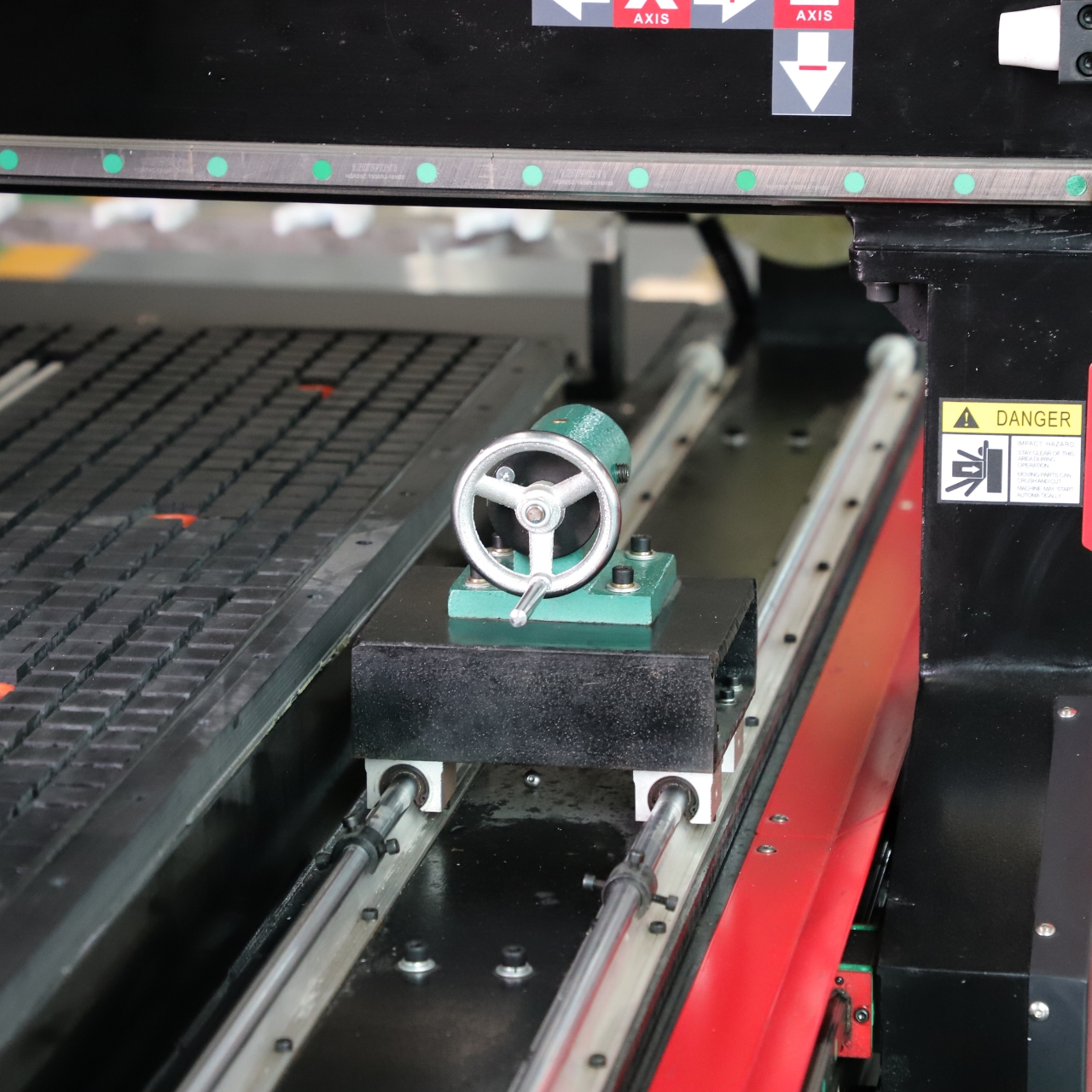

TECHNICAL SPECIFICATIONS: -1300*2500*200mm -Vacuum table+T slots,6 zones -Richauto DSP A18 controller -HSD 6kw air-cooled spindle -Fuling 7.5 kw inverter -Taiwan Delta 750W servo motor and driver -China brand Oubang reducer -Taiwan HIWIN 25/25/25mm square rails -1.5M Helical rack gears transmission on XY axis -Taiwan 2510 TBI ball screw on Z axis -Auto lubrication -Autonics Limit switch -Schneider electrical components -Golden Bridge 5.5kw vacuum blower pump -The rotary fixed on the side of the table -Working voltage 380V /3Ph/50Hz
