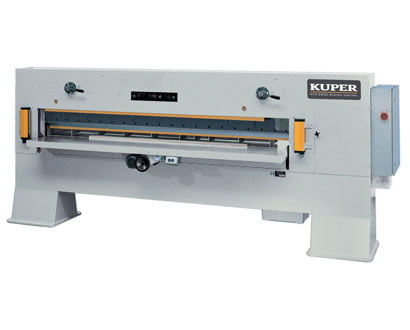

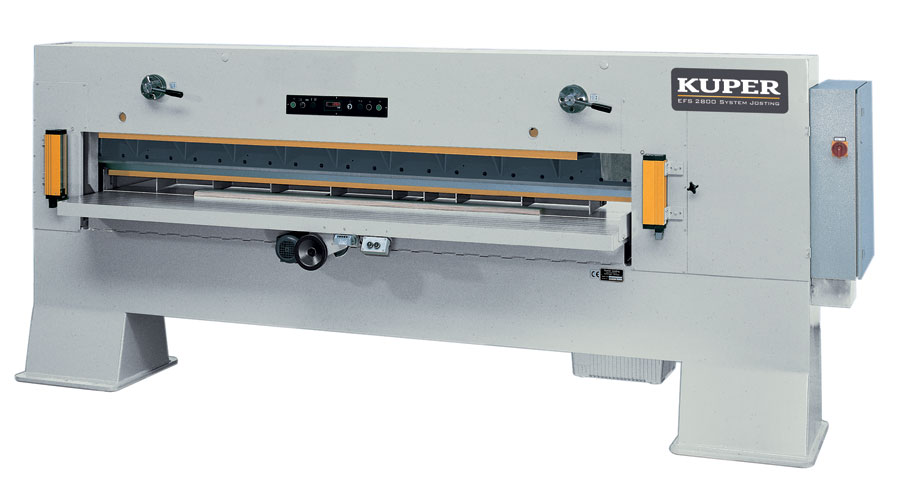

KUPER SINGLE KNIFE GUILLOTINE EFS 2800
₹7,175,000.00 ₹8,968,750.00
Warranty
12 Months GST Extra
18% Available on Request
KUPER-EFS-2800
For quick and neat veneer cutting
Straight and parallel cutting of the veneers is the
efficiency "plus" of this series. Maximum precision
in cutting ensures the tight-joint splicing after the
cut for all kinds of veneer.
Specific features
* heavy duty steel construction
* resistant PUR paint
* draw cut at an angle of 20?
* parallel fence with digital display
* quick adjustment by motor, fine
adjustment by hand wheel
* green light as cut indication
* precision hydraulics with 2 pressure
stages and top-quality valves
* light-barrier safety device
* safety electric control system
* Intermittent operation of the drives
(energy saving)
* support tables and protection gratings
TECHNICAl DATA
| Cutting lengh | : | 2800 mm |
| Insertion height | : | 80 mm |
| Parallel fence range | : | 20-720 mm |
| Pressure bar | : | hydr. cylinder, 2 pressure stages |
| Cutter bar | : | brake motor, gearing |
| Parallel fence | : | 3-phase A.C., positioning drive |
| Connected load | : | 7,7 kW |
| Operating voltage | : | 400 V, 50 cycl, 3 Ph + N + PE |
| Floor space | : | 414 x 170 cm |
| Height | : | 170 cm |
| Net weight | : | 3500 kg |
Net weight : 3500 kg
RECOMMENDED INITIAL OPERATION
SUPPLIES KUPER EFS 2800
consisting of
1 spare knife
5 cutter counter gibs
FINISHING CUT FACILITY
FOR KUPER EFS
with hydraulic adjustment of the cutter
bar by 0.9 mm between first and second
cut while veneer pack is kept pressed.
