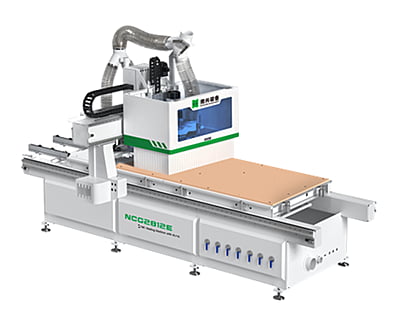

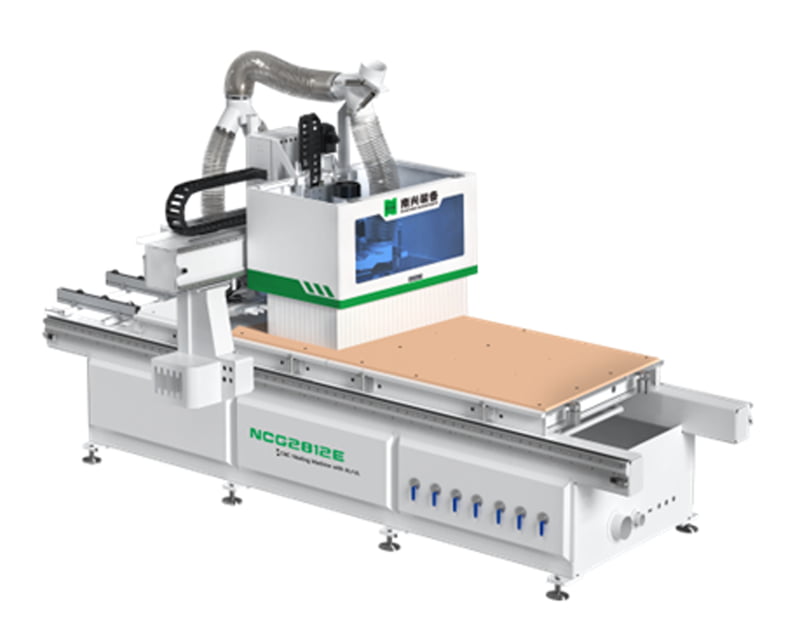

CNC Nesting Machine with AC and without drill block NCG2812E(AC) 12KW
₹2,100,000.00 ₹2,625,000.00
Warranty
12 Months Country of origin
China YouTube Video 1
https://youtu.be/5I4rExuVNQQ?si=2ewk8EZd43zru_C5 GST Extra
18% Available on Request
FEATURES:
- 1pc Vacuum Pump
- Automatic Greasing
- Side Positioning Cylinders & Positioning Cups
- 12kW main Spindle
- Automatic Line Tool Changer 12 Slots
- Start/Stop Button on gantry
- Tank Cable Chain
- Tool Setting gauge and locker
- Hand Controller
- Computer with Windows Dell Display USB Port & easy for remote assistance
- SYNTEC Control System
- Vacuum infeed cup and roller bracket
- AC Unit
- Pressure roller
TEST
TECHNICAL SPECIFICATIONS:
- Control system : SYNTEC
- Working range X : X-axis: 2,800 mm
- Working range Y : Z-axis: 50 mm
- Working range Z : Y-axis: 1,220 mm
- Working table : Size: 2800x1,220 mm Height: 950mm
- Max. traveling speed X : X-axis: 100 m/min
- Max. traveling speed Y : Z-axis: 20 m/min
- Max. traveling speed Z : Y-axis: 100 m/min
- Main spindle Quantity : 1
- Main spindle Power : 12 kW
- Main spindle Tool Holder : ISO30
- Main spindle Tool Speed : 24000 rpm
- ATC : Servo control Line tool changer with 12 slots
- Vacuum pump Quantity : 1
- Vacuum pump Power : 7.5 kW
- Vacuum pump Suction flow rate : 250 m3/h
- Dust extraction Diameter : 150 mm*1x125mm*1 Speed required: 28 m/s
- Air supply : 6-7 kg/cm2
- Power supply : 415V, 3-phase, 50 Hz
- Total power : 24 kW
- Floor space : LxWxH: 4220x2270x2500 mm
- Net weight : 2500 kg
