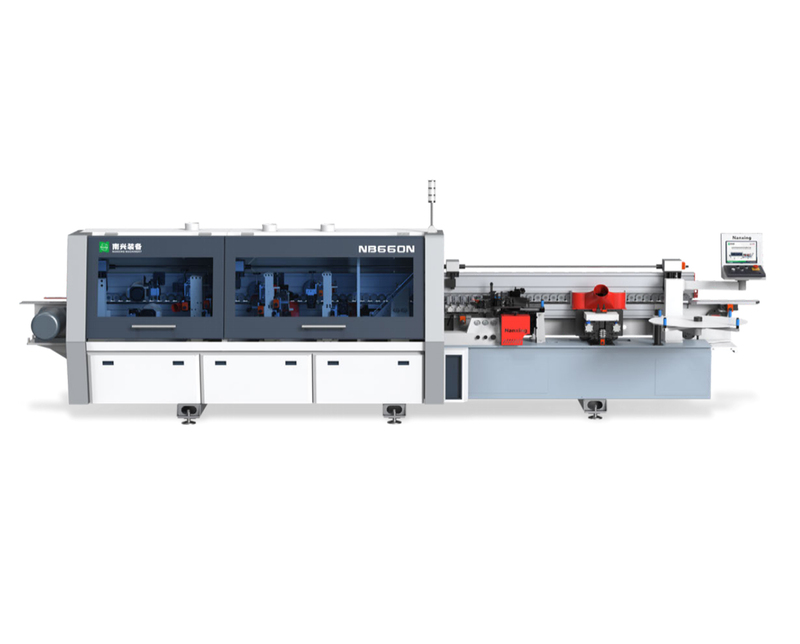

Edge Banding Machine for Narrow Edge W/o Corner rounding NB660N(NB6JN)-415V
FEATURES:
- Narrow part feeding package
- Pre-milling with 2 diamond cutters
- Pre-heating
- Coil tape bracket
- Tape Snipping
- Two-color no-cleaning PUR glue pot + Double barrel gluing machine
- PUR glue machine:20KG*2
- Pressure rollers
- Lubrication system
- End cutting
- Rough Trimming
- Fine trimming unit
- Scraping units
- Buffing units
- Safety device
Feeding protector and thickness detection
Interval feeding detection system
E-STOP
- Cover door and dust collector
- Control system 10’’ touch screen
- Operation interface Stand-by mode
- Production report
- Electric equipment PLC control
- Narrow workpiece solution
120×120mm (four sides)
200×30mm (long edge)
200×40mm (short edge)
Technical Data:
- Panel length : ≥120mm
- Panel width : ≥30mm
- Mini panel thickness
120×120mm (four sides)
200×30mm (long edge)
200×40mm (short edge)
- Panel thickness : 9-60mm
- Edge tape thickness : 0.4-3mm
- Feed speed : 16/20/24m/min
- Dust extraction : φ125mm×4
- Total power : 22.5kw
- Power Supply : 415V / 50Hz 3Ph
- Overall dimension : 6600×1050×1650mm
- Net Machine weight : 2230kg
