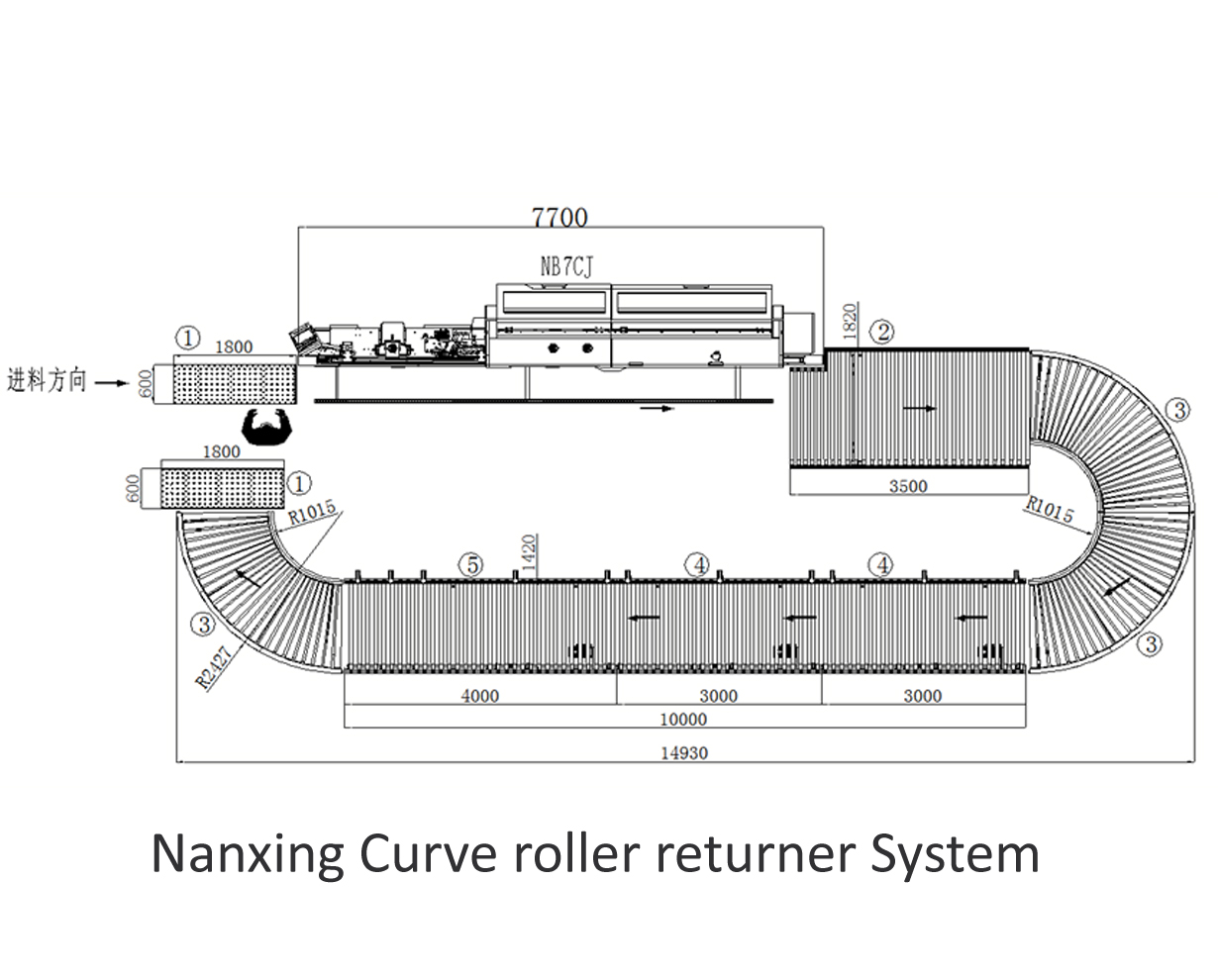

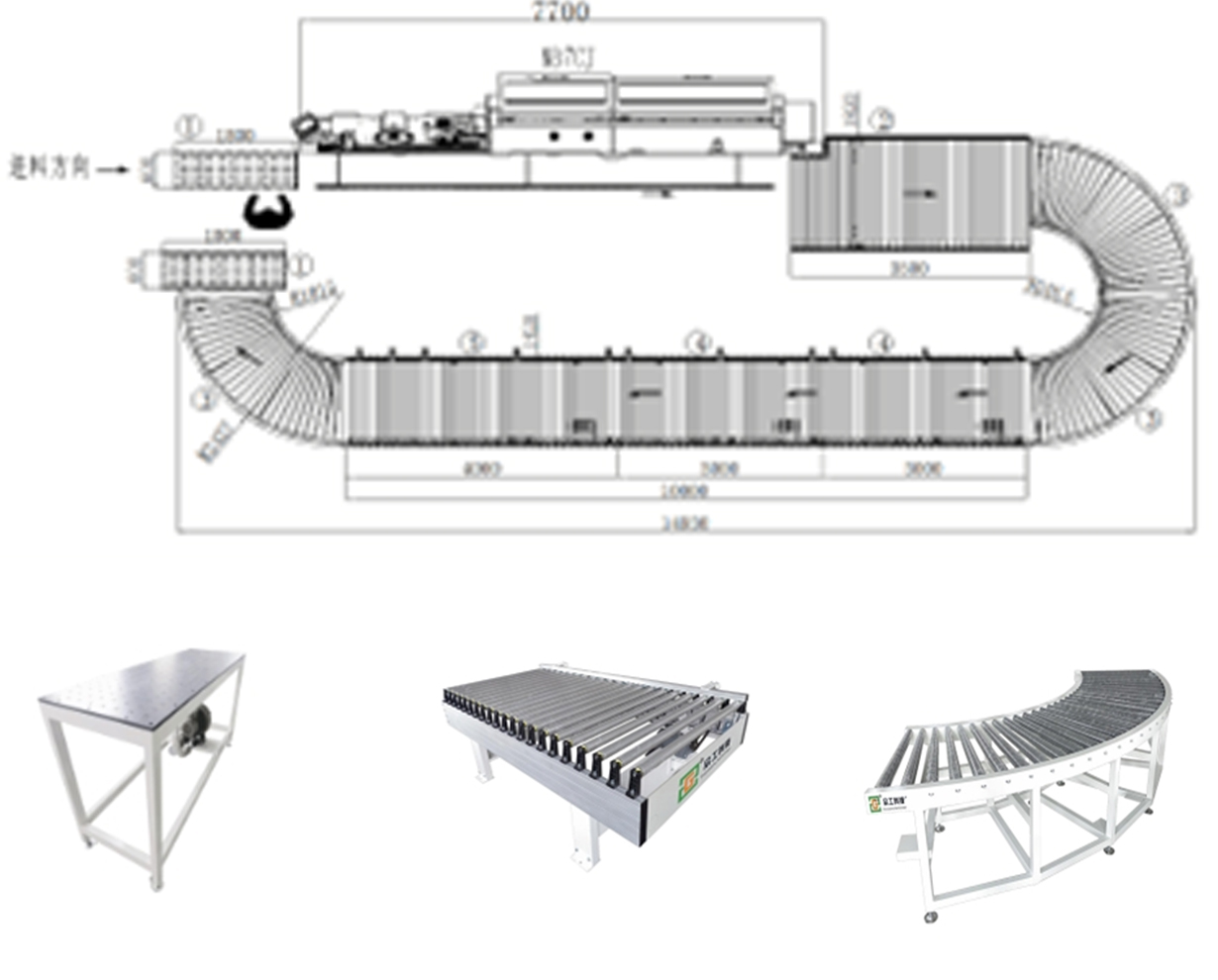

Nanxing Nb7CJMN Curve roller returner System
₹3,675,000.00 ₹4,593,750.00
Available on Request
- External dimensions: L14930mm*W5900mm*H900mm - Dimensions: L16930mm * W5900mm * H900mm (Height adjustable, length varies with the edge banding machine) - Motor power: - Single-row straight roller conveyor: 0.75KW * 4 units - Bend conveyor: 0.75KW * 3 units - Air float table blower: 1.1KW * 2 units - Total: 7.45KW (Total power may vary depending on configuration) - Voltage: Three-phase 415V / 50Hz) - PLC: Xinjie - Touchscreen: Kunlun - Frequency converter: Zhongchen - Photoelectric switch: SICK, Germany - Drive belt: PVC, green - Air float table: 12mm thick phenolic resin table surface, equipped with blower. Air float ball table surface - Roller material: Roller φ54, 2mm thick gray silicone, hardness 70, through shaft roller, roller spacing 120mm - Main beam material: 240*50 aluminum profile - Main frame: Sheet metal bending, welding, external painting - Compatible board specifications: - Minimum: L350mm × W60mm Maximum: L2440mm × W1200mm - Infeed Feedder : 1 No (530*192*430mm) - Outfeed Feedder : 1 No (530*192*430mm)
