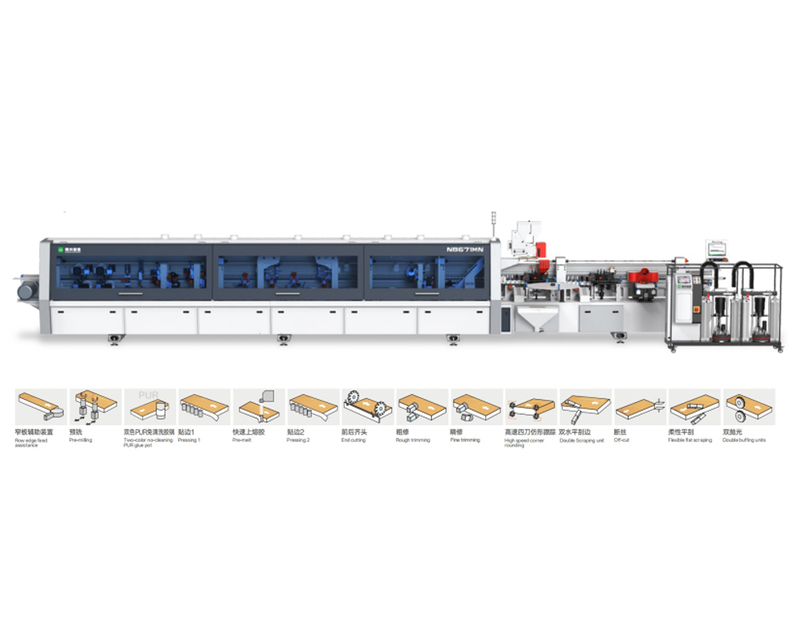

Nanxing Edge Banding Machine NB671EMN-(NB7CJMN) 20kg PUR with pre-melt
FEATURES:
- Assistance for Narrow Edge
- Sprayer unit-Cleaning agent
- Pre-milling
- 2 Sets Pre-heating sets
- Coil tape bracket*2
- Tape Snipping*2
- Pre-Melter gluing system
- Auto glue pumping + 25kg glue basin
- Tape Snipping
- PUR gluing applicator
- 2-color PUR heater
- 2 Sets Pressure Roller
- Lubrication system
- End Cutting
- 1st Fine Trimming units with 1mm Cutter Auto Move-out Function
- 2nd Fine Trimming Unit with 1.5mm Cutter Auto Move-out Function
- Corner Rounding Unit
- 2 Set Scrapping Units with 2 Pneumatic Positions
- Dust Collector 125mm
- Off Cut Device and flat scrapping unit
- Cleaning Agent Sprayers
- 2 Sets of Buffing Units
- Safety Device Feeding Protector, Thickness Detection, E-Stop
- Cover door and dust collector
- Control System 10" Touch Screen
- Operation interface - Stand-by mode
- Production Report
- Narrow workpiece solution
120x120mm (4 sides)
200x40mm (long edge)
40x200mm (short edge)
MACHINE TECHNICAL SPECIFICATIONS :
- Panel Length : 120mm
- Panel Width : 40mm
- Panel thickness (narrow edge Corner trim on) : less than or equal to 25mm
- Panel thickness : 9-60mm
- Edge tape thickness : 0.4-3mm
- Feed speed : 16/20/24m/min
- Feed speed(narrow edge Corner trim on) : 16m/min
- Dust extraction Dia. : 125mm×6
- Total power : 33.7kw
- Overall dimension : 10400×1050×1850mm
- Net weight : 3950kg
20KG PUR UNIT TECHNICAL SPECIFICATIONS :
- Gum Supply : 15-20 L/H
- Supply Pressure : 6kg/cm3
- Operating Temperature: below 200 deg.C
- Temperature control accuracy : +/- 2 deg. c
- Power Supply : 4P/380V/50Hz
- Heater Voltage : 220v
- Weight : 300kg
- Barrel Diameter : 280mm
- Max. Working Pressure : 150kg
- Environmental tamp. : -10 - 55 deg. C
- Temperature Sensor : Type K
- Total Power of the machine : 10.9kw
- Machine Size LxWxH: 1800mm x 550mm x 1600mm
