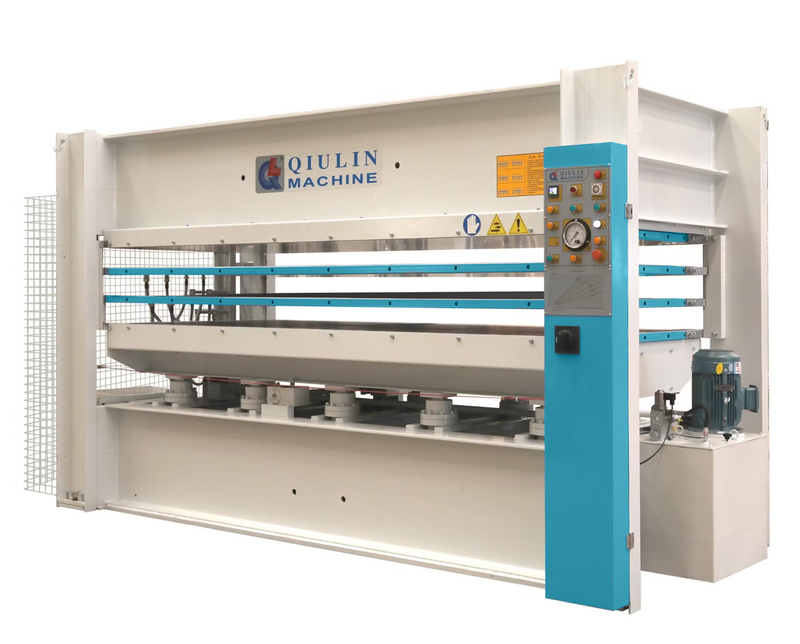

Hot Press Machine BY214X9/16(2)H1RC [3000x1300mm | 160T | Solid Steel | Daylight 2]
TECHNICAL DATA
• Total pressure : 1600KN
• Specific pressure: : 4.1Kgf/cm2
• Working layer : 2
• Platen No.& Size : 3-3000x1300x42mm(solid steel drilled hot platen covered with mylar)
• Platen opening : 170mm
• Cylinder No.& Dia : 10-φ85mm
• Max temperature : 120℃
• Heating way : Electric heating with thermic oil
• Heating medium: : Thermic oil
• Installation power : 4 1.5 54KW
• Platen opening way : Automatically
• Loading way : Length side,Manually
• Voltage : 3PE 415V 50Hz
