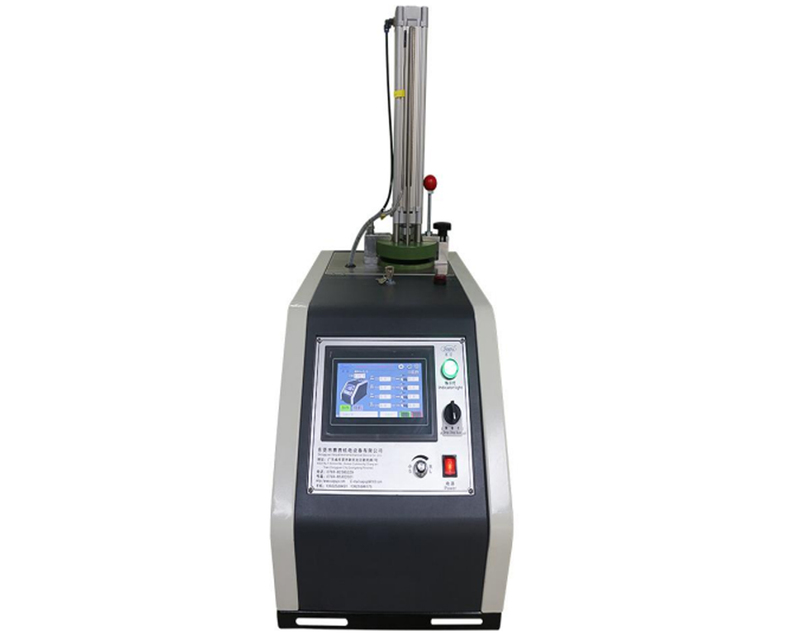

Nanxing 2KG PUR GLUE MACHINE V022295x
₹600,000.00 ₹750,000.00
Warranty
12 Months Country of origin
China GST Extra
18% Available on Request
TECHNICAL PARAMETER
- External dimensions : L1040xW550xH1250mm
- Net weight : 100kg
- Power type : AC220V/50HZ
- Heating power : 3.5KW
- Specification of glue barrel : 2.5L packing specification
- Inner diameter of glue barrel : 128mm diameter cylinder
- Maximum rotary speed of motor : 60rpm
- Inner diameter of glue tube : 8mm
- Working air pressure : 0.4 - 0.8MPa
PERFORMANCE
- Control system : Temperature controller
- Range of temperature control : Normal temperature-180 ℃
- Heating time : 25 minutes
- Maximum glue pressure : ≤5kg/cm2
- Insulation function : Yes
- Over temperature protection : Yes
- Low glue level alarm : Yes
- Empty barrel alarm : Yes
- Stroke of platen : Max:280mm
