• TECHNICAL SPECIFICATIONS

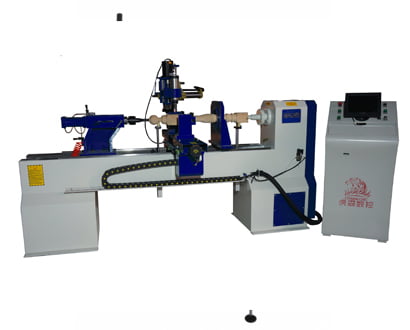

• Function : Wood turning Fluting Cylinder Engraving Flat Engraving
• Max working size : 1500*300mm This lathe apply to Stair Wooden Railing, the leg of chair & Desk, Sofa etc rotating wooden products machining.
• Lathe Body : Integrally cast (via the finite element analysis and design), 1.6 tons, machining stability, small inertia
• Operational control : 12 Inches large color LCD display, distribution of computer, curve drawing or photo scanning curve plotting, automatic generation of international general G code program files, easy to learn, according to the current machining work piece size requires real-time modified files, can real-time simulation machining simulation, one-click keyboard operation, convenient and quick.
• Spindle Motor : 5.5KW 4 pole Variable stepper motor/580W Beigela stepper motor/2.2kw European Fiat Spindle/0-3500rpm ,Turn knob to adjust any belt speed change?Can add and subtract by cylinder rotation condition in the manufacturing process of rotating speed and feeding speed, to reach to the best processing surface effect.
• X,Y,Z Axis Drive : Yako drive
• Feeding Speed : 3000mm/min
• Linear Guide : Taiwan � CSK High grinding linear square rail
• Drive train : Taiwan TBI High precision ball anti-backlash screw
• Technical support : English teaching videos and instruction book
• Voltage : 380V 50HZ
• Tools : Turning tools 2pcs/Fluting tools 2 pcs/engraving tools 1 box Hardware, Software & Auxiliary configuration Rotary center follow rest (5-6 wood square,);On the precise positioning of double cylinder rack; Electronic automatic braking frequency converter; The tail thimble manual drawing, combined with pneumatic, convenient and flexible; Random wrench etc tool; The basic pattern files; Engraving &groove multi-function spindle and control part; Universal rotary joints, with control and easy to use software. Intelligent protection work surface (limit alarm system), to prevent collisions. Control Software The original COSEN's numerical control woodworking lathe operating system, the realization of automatic dynamic updates, Support for multiple software output code Support Software Autocad/Coreldraw/Type3/Artcam/Ucancam/Caxa/Mastercam/UG etc
