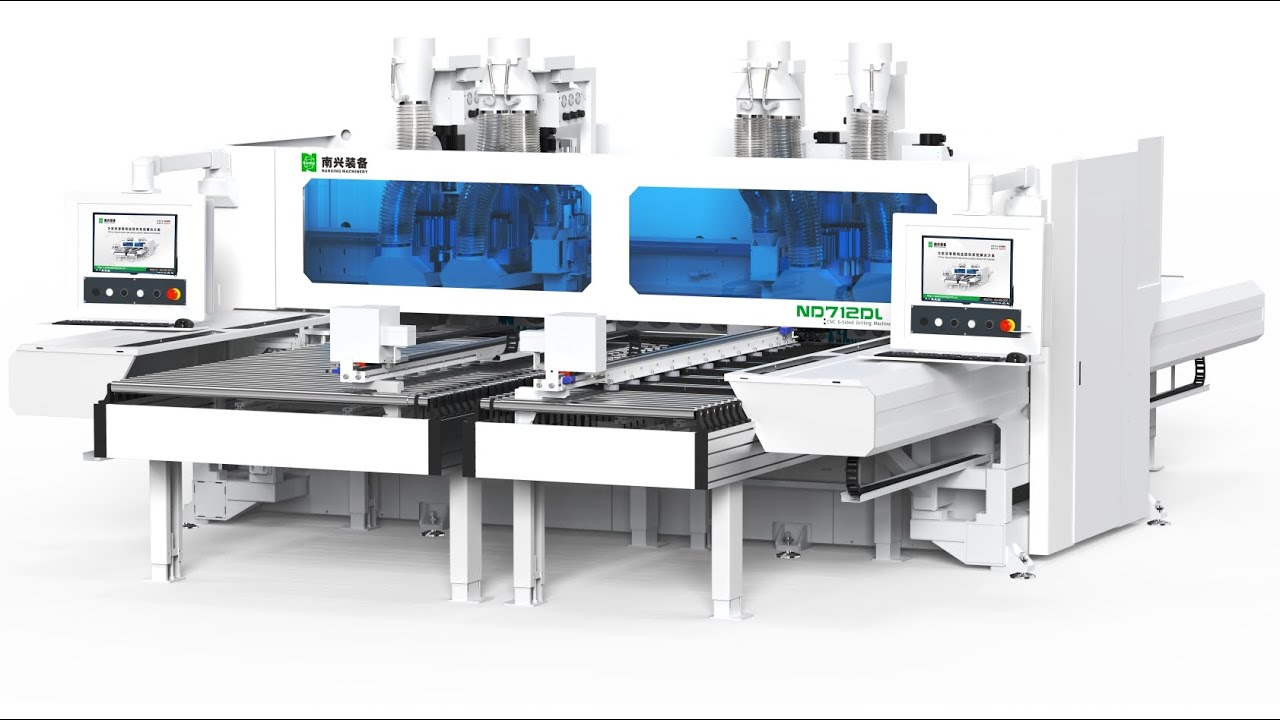

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(1200+650) Gripper+AC for Cabinet
FEATURES
- 2 work stations
- Long clamp beams & fast clamps
- Infeed side alignment
- Board size detection
- Positioning
- 2 sets independent processing Units
- Accurate movement of each axis
- Quick change tool
- Cable chain
- Outfeed table
- Min. processing part 50x200mm
- Stack processing
- Manual controller wheel
- Start button & foot pedal
- E-stop & Pause bar
- Industrial computer*2
- SYNTEC CNC control system
- User-friendly operation
- Bar-code reader
- File format support.
MPR, DXF, BAN, BPP, PDX; XML; XXL.
- Workpiece thickness detection
- Hand Controller
- Air conditioner for electrical Cabinet
- Gripper airjet
TECHNICAL SPECIFICATIONS
- Total power : 48.36KW
- Machine size : 7,400*4,470*2,380mm
- Power supply : 415V/50Hz3PH
- Air supply : 0.6-0.7MPa
- Total weight : 6,300Kg
- Control system : SYNTEC
- Panel Length : 200-3,000mm
- Panel Width : 30-1200+650mm
- Panel thickness : 10-60mm
- Max. traveling speed (X/U) axis : : 135m/min
- Max. traveling speed Y axis : : 75m/min
- Max. traveling speed Z axis : : 30m/min
- Max. traveling speed (X/U) axis : : 135m/min
- Transmission mode X & Y : Rack and pinion
- Transmission mode Z : Ball screw rod
Drilling blocks
- Boring block qty : Top 2+2 , Bottom1+1
- Vertical drills qty(top) : 19*4
- Horizontal drills qty(top) : X:3×8+Y:2x4
- Vertical. drills qty(Bottom) : 9x2
- Max. drill diameter : 35mm Dia.
- Drill spacing : 32mm
- Rotation speed : 5000rpm
- Shank diameter : 10mm
- Main spindle qty : 4*ER32
- Main spindle power : 4*3.5kwmax.18000rpm
- Dust collector Top : 200x4
- Dust collector Bottom : 125mm×2
- Dust Collector Speed : 28m/min
