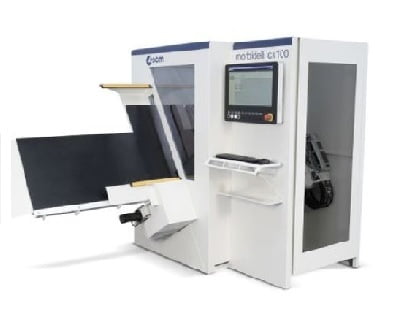

Scm Cnc Drilling Machine (R024001)

₹4,830,000.00 ₹6,037,500.00
Available on Request
MACHINE CONFIGURATION:
- R0.00.35 - N. 1 : morbidelli cx100 R
- 93.07.31 - N. 1 : Volt 400 EU
- 93.12.01 - N. 1 : Frequency 50 Hz
- 63.01.27 - N. 1 : Electric cabinet with air conditioning device
- 63.02.32 - N. 1 : Device to increase the drilling pressure along Z axis
- OF.42.55 - N. 1 : 5,5kW electrospindle
- OF.02.66 - N. 1 : Consolle with eye-M integrated PC
- 90.00.64 - N. 1 : Electronic Hardware equipment
- OF.04.38 - N. 1 : MAESTRO ACTIVE Human-Machine interface software (HMI)
- 63.03.59 - N. 1 : Additional key for Maestro cnc (USB port)


TEST
TECHNICAl SPECIFICATIONS:

AXES
- Max. panel lenght [mm]  : 3.05
- Min. panel lenght [mm]  : 200
- Max. panel width * [mm]  : 900
- Min. panel width [mm]  : 70
- Max. panel thickness [mm]  : 60
- Min. panel thickness [mm]  : 10
- Max. X axis speed  [m/min]  : 40
- Max. Y axis speed [m/min]  : 40
DRILLING HEAD RO.AX
- Connection tools with cylindrical shank [Dia. mm]  : 10
- Maximum tools diameter [mm]  : 70
- Vertical spindles [n.]  : 12 (7X-5Y)
- Horizontal spindles [n.]  : 2+2 (X) 2(Y)
- Rotating spindles motor power [kW (Hp)]  : 2,2 (3)
- Spindle speed [rpm]  : 4.500 (8000 with inverter)
- Max. panel lenght  : X
- Max. diameter of disc cutter [mm]  : 125
- Disc cutter rotating speed [rpm]  : 5.500 (10.000 with inverter)
ELECTROSPINDLE
- Motor power (S6) [kW (Hp)]  : 5,5 (7,5)
- Max. speed [rpm]  : 18
- Max. panel lenght  : manual
- Max. tool diameter [mm]  : 20
INSTALLATION
- Compressed air consumption [Nl/cycle]  : 450
- Extraction air consumption [m3/h]  : 1900+550 (+300 SR)
- Exhaust air speed [m/sec]  : 30
- Installed motor power [kVA]  : 17 (vers. S) - 21 (vers. SR)
- Exhaust outlet diameter [mm]  : 150+80 (+60 SR)
- Machine weight [kg]  : 1350
