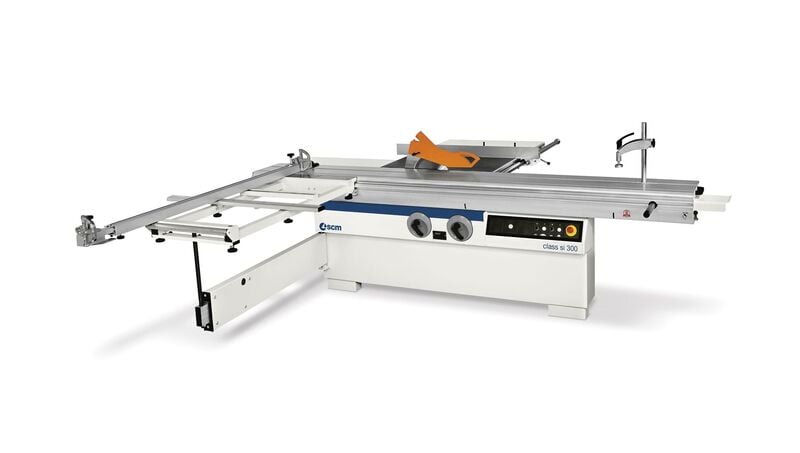

SCM Circular Saw / Panel Saw Class SI300 With Tilting Blade - R000304
₹1,000,000.00 ₹1,250,000.00
Available on Request
SCM Heavy Duty Panel Saw Machine having 3200mm Sliding table, 1270mm Ripping Capacity, 100mm Max. Cutting Height can handle Sold Wood, Plywood, HDF, MDF, and othe nonferrous materials with a respective Saw Blade.
FEATURES:
- Lifting and tilting of saw unit means of handwheels on the machine front side and mechanical readout of saw unit tilt
- Anodized aluminium alloy sliding carriage on high precision "arch-formed" hardened steel guides, which are fixed on
the carriage by means of mechanical bending system
- Eccentric clamp
- Squaring frame the fast fence positioning of angular cuttings
- Outfeed table extensions
- Sliding carriage length 3200 mm
- Manual parallel fence with position readout on metric rule, sliding system on 40mm steel bar and micrometric
adjustment
- Direct start main motor with pushbuttons
- Independent powered scoring unit external setting up and stops for a quick re-positioning of the blade
TECHNICAL DATA:
- Max cutting height at 90���? (mm) : 100 with blade 315mm
- Max cutting height at 45���? (mm) : 70 with blade 315mm
- Blade tilt (degrees) : 45���?
- Blades lifting and tilt : manual
- Main blade rotating speed (rpm) : 4000
- Scoring unit rotating speed (rpm) : 8500
- Saw unit motor power (S6 -40%) kW (HP) 50Hz : 5 (7)
- Scoring unit motor power (S6 -40%) kW (HP) 50Hz : 1,3 (1,7)
- with 3200 carriage (mm) : 3200x3200
- Cutting width on parallel fence (mm) : 1270
Exhaust outlet diameter
- at the base (mm) : 120
- on overhead protection (mm) : 100
- on riving knife (mm) : 60
- Basic machine net weight (kg) : 1050
Specifications
Sawing Specifications
- Squaring Capacity3200 mm
- Ripping capacity1270 mm
- Max. Cutting Height100 mm
- Main Saw Unit Power5 kW
- Main Saw Rpm4000
