SCM

STANDARD MACHINE

• 10.99.99 : Security execution

• RF.06.42 : formula sr 900

• 93.07.72 : Voltage 400 EU

• 93.12.05 : Frequency 50 hz

• 58.04.28 : Rollers table, 1 meter length, on the blade left side (each)

• 58.04.01 : Roller table, 1 meter length, on the blade right side (each)

• 58.04.29 : Aluminium fence on wooden table

• 10.99.91 : Machine language: ENGLISH

CONFIGURATION

• 10.99.99 N. 1 : Security execution

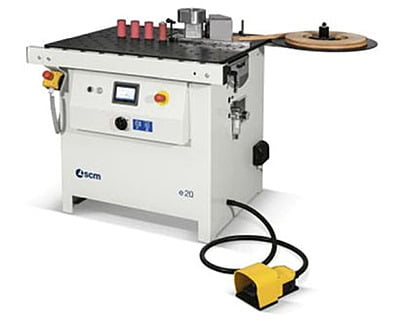

• R0.08.57 N. 1 : e 20 CE version

• 93.07.31 N. 1 : Volt 400 EU

• 93.12.01 N. 1 : Frequency 50 Hz

• 62.15.70 N. 1 : Adjustable tilting table from 0 to 45°

• 62.15.71 N. 1 : Infeed fence for linear panels

• 62.15.72 N. 1 : 3-roller outfeed fence

• 62.13.87 N. 1 : Front extension for the support of large dimensions panels

• 62.15.79 N. 1 : Glue pot for poliurethane glue supplied in substitution of the standard one

• 08.32.05 N. 1 : Wood blocks

• 10.99.91 N. 1 : Machine language: ENGLISH

INCLUDES

• 10.99.99 - Security execution

• R0.22.44 - nova si 40

• 93.07.72 - Voltage 400 EU

• 93.12.05 - Frequency 50 hz

• 58.04.90 - Version with maximum squaring stroke 3200 mm

• 58.05.21 - Powered parallel fence with electronic programmer (1 axis)

• 58.03.47 - 2 saw blade rotating speed (3500/5000 rpm)

• 58.05.04 - Squaring fence with no. 2 LCD readouts for stops position

• 08.32.20 - Wood Block

• 10.99.91 - Machine language English

• Item number: NOVA SI 40

• Configuration: R012701

• Certification model type: S-05

• CONFIGURATION -Composition Code: R004402

• R1.11.64 : nova f 520

• 93.07.31 : Volt 400 EU

• 93.12.01 : Frequency 50 Hz

• 55.50.14 : P1 version

• CE and electrical protections)

• 57.01.27 : Additional overturning fence

• 57.03.23 : Xylent spiralknife cutterblock with 3 series of knife

• 57.03.27 : Xylent maintenance kit

• 57.03.28 : 10 spare inserts kit (15x15x2,5) for Xylent spindle

• 08.32.50 : Wooden Block

• 10.99.91 : Machine language: ENGLISH

• CONFIGURATION

• Composition Code : R027101

• 10.99.99 : Security execution

• R1.07.16 : dmc sd 60 composition RCS 135 with

• 93.07.31 : Volt 400 EU

• 93.12.01 : Frequency 50 Hz

• 44.44.19 : "B" version for RCS

• 33.31.51 : Infeed and outfeed support rollers for long and short workpieces

• 47.07.35 : Oscillating belt cleaning blower on the 1st group

• 47.07.36 : Oscillating belt cleaning blower on the 2nd group

• 41.18.55 : 0.75 kW (1Hp) sdjustable feed belt mptor

• 64.00.30 : Sanding belt optimiser: LED indicator for panel introduction

• Basic

• 31.21.60 : "RA" Helicoidal grooved steel calibrat. Roller 1st group

• 97.50.73 : 2-speed main motor 11 kW (15Hp)

• 08.32.26 : Wood block

• 10.92.12 : English machine plate

FEATURES

• control panel on machine infeed side

• machine frame made of high rigidity ribbed steel to guarantee an excellent support for the operating units

• top thick steel pressure beam with rubber coated wheels

• exclusive feed truck

• manual adjustment of top beam with automatic positioning of the operating units according to the selected panel thickness

• numeric indicator of the selected panel thickness

• glue smokes specific exhaust outlet; centralized extraction of the other dusts

• panel support roller which can be extended on the entire length of the machine

• safety enclosure

• electrical cabinet with PLC, padlockable main switch and overload protection

• emergency push buttons GLUE POT UNIT, EDGE LOADING AND PRESSING SYSTEM

• motor power [kW] :  0,18

• glue capacity [kg] : ~ 0,8 END CUTTING UNIT

• End cutting unit for the cut at 90???? on the leading and trailing edges of the panel.

• Possibility to exclude the unit through PLC. SUPERPOSED TRIMMING UNIT

• motor power  [kW] : 0,55

• widia cutters : Dia 75 mm Z4

• cutters rotation speed [rpm] : 12000 EDGE SCRAPING UNIT

• For the finishing of 2 mm PVC/ABS edges.

• It assures an excellent vibration free finish thanks to its high rigidity structure BRUSHING UNIT

• With two independent motors for the cleaning and polishing of the edge.

• Tilted, vertically adjustable motors to optimize the cleaning/polishing action. TECHNICAL SPECIFICATION

• Technical features   : me 22

• worktable dimensions  [mm] : 2600 x 530

• worktable height  [mm] : 904

• thickness of rolled edges  [mm] : 0,4 - 2

• thickness of edges in strips  [mm] : up to 5

• min.

• max. panel height  [mm] : 12 to 50

• min.

• max. panel height using edge scraping unit  [mm] : 16 to 50

• min. panel length/width with rolled edges  [mm] : 190/65

• min. panel length cut only on the front  [mm] : 120

• feed speed  [m/min] : 7

• feed motor power  [kW] : 0,55

• pneumatic operating pressure  [bar] : 6,5

• exhaust outlet diameter (base)  [mm] : 120

• exhaust outlet diameter (glue pot)  [mm] : 60

• operating temperature  [????C] : 20 to 190

• Glue pot unit:   :

• motor power   [kW] : 0,18

• glue capacity  [kg] : ~ 0,8

• Trimming unit   :

• widia cutters   : Dia. 75 mm Z4

• cutters rotation speed  [rpm] : 9 Frequently Asked QuestionsWhat SCM machines does Caple supply?Caple is an authorised SCM dealer supplying edge banders, wide belt sanders, panel saws, CNC nesting machines, and beam saws from SCM Group — one of Italy's leading woodworking machinery manufacturers.How does an SCM edge bander compare to entry-level edge banders?SCM edge banders feature precision German-engineered glue units, servo-controlled feed systems, and digital parameter adjustment — delivering superior edge quality, faster changeover, and longer service life versus entry-level machines.What is the lead time for SCM machines in India?Lead times for SCM machines vary by model and configuration. Contact Caple at caple.in/contact for current availability and delivery timelines.Does SCM equipment work with Indian wood species?Yes — SCM machines are engineered for hardwoods, softwoods, MDF, plywood, and particle board, including Indian species like teak, sheesham, and mango wood commonly used in Indian furniture manufacturing.What after-sales support does Caple provide for SCM?Caple provides installation, operator training, scheduled maintenance, and spare parts supply for SCM machines. Contact us at caple.in/contact.

• 10.40.00 - Ce norms

• R7.06.00 - ME 20-CE, Automatic Edge Bander with glue pot with devices in conformity with european safety regulations

• 93.07.72 - Voltage 400EU

• 91.12.05 - Frequency 50 hz

• 08.33.21 - Wood Blocks

• 10.99.91 - Machine Language English

• Item number: ME20 Configuration: R001805 Certification model type: B-04

STANDARD MACHINE

• composition code: R002204 / R020401

• 10.99.99 - Security execution

• R0.20.43 - minimax sc 2c

• 93.07.72 - Voltage 400 EU

• 93.12.05 - Frequency 50 hz

• 58.10.17 - Belt driven scoring unit complete with blade

• 08.33.12 - Wooden Block

• 08.09.99 - Delivery ex factory

CONFIGURATION

• composition code: R013301 / R015501

• 10.99.99 : Security execution

• R0.21.98 : minimax fs 41es

• 93.07.72 : Voltage 400 EU

• 93.12.05 : Frequency 50 hz

• 58.02.22 : Rubber-coated feed roller on thicknesser outfeed

• 58.04.93 : Xylent spiralknife cutterblock with 3 series of knives

• 57.03.27 : Xylent maintenance kit

• 57.03.28 : 10 spare inserts kit (15x15x2,5) for Xylent spindle

• 58.02.41 : Additional overturning fence for processing of thin workpieces

- 08.33.18 : WOOD BLOCKS

CONFIGIRATION

• 10.99.99 : Security execution

• R0.21.98 : minimax fs 41es

• 93.07.72 : Voltage 400 EU

• 93.12.05 : Frequency 50 hz

• 58.02.22 : Rubber-coated feed roller on thicknesser outfeed

• 58.04.93 : Xylent spiralknife cutterblock with 3 series of knives

• 57.03.27 : Xylent maintenance kit

• 57.03.28 : 10 spare inserts kit (15x15x2,5) for Xylent spindle

• 58.02.41 : Additional overturning fence for processing of thin workpieces

• 58.01.14 : Bridge planer protection (standard for CE version)

- 08.33.18 : WOOD BLOCKS

• 10.99.91 : Machine language: ENGLISH

• Item number: FS 41 ES Configuration: R013701

• Certification model type: FS-03

• CONFIGURATION

• 10.99.99 : Security execution

• R0.21.80 : minimax s 41es

• 93.07.72 : Voltage 400 EU

• 93.12.05 : Frequency 50 hz

• 58.04.93 : "Xylent" spiralknife cutterblock with 3 series of knives

• 57.03.27 : Xylent maintenance kit

• 58.02.22 : Rubber-coated feed roller on thicknesser outfeed

• 08.33.18 : WOOD BLOCKS

• 10.99.91 : Machine language: ENGLISH

• CONFIGURATION

• 10.99.99 : Security execution

• R1.11.64 : nova f 520

• 93.07.31 : Volt 400 EU

• 93.12.01 : Frequency 50 Hz

• 57.01.27 : Additional overturning fence

• 57.03.23 : Xylent spiralknife cutterblock with 3 series of knife

• 57.03.27 : Xylent maintenance kit

• 57.03.28 : 10 spare inserts kit (15x15x2,5) for Xylent spindle

• 08.32.50 : Wood blocks

• 10.99.91 : Machine language: ENGLISH Item number: NOVA F 520 Configuration: R004701 Certification model type: F 52

• Previous composition code : R001102

FEATURES

• Pre-setting for mortiser

• New design of the dust-conveyor, to protect the cutter block, for further system safety increase

• Version with maximum squaring stroke 2600 mm

• Belt driven scoring unit complete with blade - 2 extra handwheels for the operating unit's movement

• Professional fences

• Xylent spiral knife cutter block with 3 series of knives

• Xylent maintenance kit

• Cast iron mortiser - 0-16 mm self-centering (Wescott type) chuck

• Bridge planer protection (standard for CE version)

• Anodized aluminium tables for spindle moulder fence

• Spindle moulder shaft of 30 mm diam.

• Locking by countersunk socket screw TECHNICAL

FEATURES

• PLANER

• useful working width [mm] : 300

• cutter block diameter (mm)/n. standard knives  : 72/3

• standard knives dimensions [mm] : 300 x 30 x 3

• max. stock removal [mm] : 4

• surfacing tables total length [mm] : 1510

• thicknessing table dimensions [mm] : 585 x 300

• feed speed on thicknesser [m/min] : 7

• min. ? max. working height on thicknesser [mm] : 3 ? 230 CIRCULAr SAW

• cast iron saw-spindle moulder worktable dimensions [mm] : 1115 x 335

• blades tilting  : 90? ? 45?

• max. saw blade diam. with scoring blade installed [mm] : 315

• max. saw blade projection from table at 90?/45? [mm] : 100/78

• max. squaring stroke (standard) [mm] : 1600

• cutting width on parallel fence [mm] : 820 SPINDLE MOULDER

• max. useful spindle length [mm] : 100*

• spindle moulder speeds (at 50 Hz) [rpm] : 3500/7000/10.000

• max. tool diameter when profiling [mm] : 210

• max. diam. of tool lowered under the table at 90? [mm] : 180 OTHER TECHNICAL FEATURES

• three-phase motors S6  :  5kW (6,6hp) 50Hz - 6kW (8hp) 60Hz

• exhaust outlets diameter [mm] : 120

• Spindle moulder available with following diameters:  : 30  32 - 35 - 40 - 50 mm 3/4" - 1" - 1 1/4" Frequently Asked QuestionsWhat SCM machines does Caple supply?Caple is an authorised SCM dealer supplying edge banders, wide belt sanders, panel saws, CNC nesting machines, and beam saws from SCM Group — one of Italy's leading woodworking machinery manufacturers.How does an SCM edge bander compare to entry-level edge banders?SCM edge banders feature precision German-engineered glue units, servo-controlled feed systems, and digital parameter adjustment — delivering superior edge quality, faster changeover, and longer service life versus entry-level machines.What is the lead time for SCM machines in India?Lead times for SCM machines vary by model and configuration. Contact Caple at caple.in/contact for current availability and delivery timelines.Does SCM equipment work with Indian wood species?Yes — SCM machines are engineered for hardwoods, softwoods, MDF, plywood, and particle board, including Indian species like teak, sheesham, and mango wood commonly used in Indian furniture manufacturing.What after-sales support does Caple provide for SCM?Caple provides installation, operator training, scheduled maintenance, and spare parts supply for SCM machines. Contact us at caple.in/contact.

FEATURES

• INCREDIBLE CUTTING WITH THE NEW SAW UNIT AND SLIDING TABLE

• SQUARING FRAME AND FENCE: MAXIMUM PERFORMANCE AS STANDARD - 90? . SIMULTANEOUS TABLES OPENING TOWARDS THE INSIDE OF THE MACHINE:  EXCEPTIONAL ACCESS

• Extruded anodized aluminium sliding table (dimensions 270 x 124 x 1600 mm) sliding on high precision hardened steel guideways

• Squaring frame (dimensions 1200 x 650 mm) complete with:

• telescopic fence with 2 crosscut flip-over stops

• eccentric clamp

• swinging arm support

• Saw unit with 315 mm maximum blade diameter with scoring blade (option) installed (blade not included)

• Simultaneous surfacing tables opening, at 90?     , towards the inside of the machine

• Adjustable spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers

• Integrated fence, for parallel cuts and surface planing

• Pre-setting for mortiser

• New design of the dust-conveyor, to protect the cutter block, for further system safety increase

• Belt driven scoring unit complete with blade  - 2 extra handwheels for the operating units movement

• Professional fences

• Xylent spiralknife cutterblock with 3 series of knives

• Anodized aluminium tables for spindle moulder fence

• Cast iron mortiser

• Spindle moulder shaft of 30 mm diam

TECHNICAL DATA

• PLANER:

• useful working width [mm] : 300

• cutter block diameter (mm)/n. standard knives  : 72/3

• standard knives dimensions [mm] : 300 x 30 x 3

• max. stock removal [mm] : 4

• surfacing tables total length [mm] : 1510

• thicknessing table dimensions [mm] : 585 x 300

• feed speed on thicknesser [m/min] : 7

• min.   max. working height on thicknesser [mm] : 3 - 230 CIRCULAR SAW :

• cast iron saw-spindle moulder worktable dimensions [mm] : 1115 x 335

• blades tilting  : 90? - 45 ?

• max. saw blade diam. with scoring blade installed [mm] : 315

• max. saw blade projection from table at 90?   /45 ?      [mm] : 100/78

• max. squaring stroke (standard) [mm] : 1600

• cutting width on parallel fence [mm] : 820 SPINDLE MOULDER :

• max. useful spindle length [mm] : 100*

• spindle moulder speeds (at 50 Hz) [rpm] : 3500/7000/10.000

• max. tool diameter when profiling [mm] : 210

• max. diam. of tool lowered under the table at 90  [mm] : 180

• three-phase motors S6  :  5kW (6,6hp) 50Hz

• exhaust outlets diameter [mm] : 120 Frequently Asked QuestionsWhat SCM machines does Caple supply?Caple is an authorised SCM dealer supplying edge banders, wide belt sanders, panel saws, CNC nesting machines, and beam saws from SCM Group — one of Italy's leading woodworking machinery manufacturers.How does an SCM edge bander compare to entry-level edge banders?SCM edge banders feature precision German-engineered glue units, servo-controlled feed systems, and digital parameter adjustment — delivering superior edge quality, faster changeover, and longer service life versus entry-level machines.What is the lead time for SCM machines in India?Lead times for SCM machines vary by model and configuration. Contact Caple at caple.in/contact for current availability and delivery timelines.Does SCM equipment work with Indian wood species?Yes — SCM machines are engineered for hardwoods, softwoods, MDF, plywood, and particle board, including Indian species like teak, sheesham, and mango wood commonly used in Indian furniture manufacturing.What after-sales support does Caple provide for SCM?Caple provides installation, operator training, scheduled maintenance, and spare parts supply for SCM machines. Contact us at caple.in/contact.
